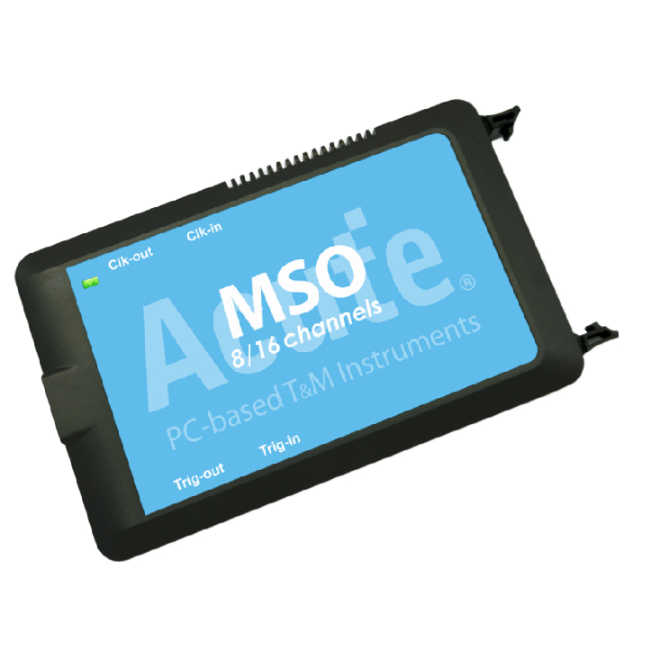

DSO Spec.
Power source: USB bus-power (+5V)
Static power consumption: 0.9W
Max power consumption: <6W
≧12 bits Sampling [Record length]: 200MHz
Input channels: 16
Bandwidth: 40 MHz
Resolution: 12 bits
LA Spec.
Power Source: USB bus-power (+5V)
Static Power Consumption: 0.9W
Max Power Consumption: <6W
Hardware Interface: USB 3.0
Timing Analysis (Asynchronous，Max. Sample Rate): 2 GHz
State Clock Rate (Synchronous，External Clock): 200 MHz
Storage: Conventional Timing, Transitional Timing
Channels: 16
Total Memory: 4Gb
Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch
2GHz Timing [Available Chs] - Memory per Ch: [4/3] - 1Gb
1GHz Timing [Available Chs] - Memory per Ch: [8/6] - 512Mb
500MHz Timing [Available Chs] - Memory per Ch: [16/12] - 256Mb
250MHz Timing [Available Chs] - Memory per Ch: [16/16] - 256Mb
Channel to channel skew: < 1ns
Input channels: N/A
Input impedance: 1MΩ//2pF
Max. (Non-destructive): over ±42V DC & AC
Input operation: ±20V / ±10V (Standard / High Resolution)
Input sensitivity: 200MHz (1Vpp)
Threshold group: 2 (CH0~7 & CKI, CH8~15)
Threshold range: ±20V
Threshold resolution: 50mV
Threshold accuracy: ±100mV + 5%*Vth
Trigger resolution: 500ps
Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, Setup/Hold Timing Violation, External, Manual
Protocol Trigger:
BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1.1, SENT, SPI, UART (RS232), USB PD 3
Protocol Analyzer:
BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1.1, SPI, UART (RS232), USB PD 3
