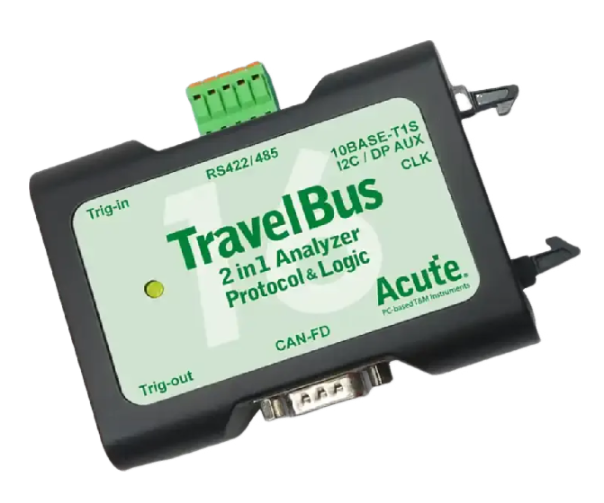

Power Source: USB bus-power (+5V)
Static Power Consumption: 0.75W
Max Power Consumption: < 2.5W
Hardware Interface: USB 3.0
Timing Analysis (Asynchronous，Max. Sample Rate): 800 MHz
State Clock Rate (Synchronous，External Clock): 200 MHz
Storage: Transitional Storage
Channels: 25
4GHz Timing [Available Chs] - Memory per Ch
Input impedance: 200KΩ // <5pF
Max. (Non-destructive): ±40V DC, 15Vpp AC
Input sensitivity: 0.5Vpp @150MHz
Threshold group: 2 (ch0~7, ch8~15 & clk0)
Threshold range: ±6V
Threshold resolution: 50mV
Threshold accuracy: ±100mV + 5%*Vth
Trigger resolution: 1.25 ns
Trigger types: Channel, Pattern, Single, Width, Time-out, External
Protocol Trigger:
BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus, PMBus, Profibus, PWM, RS422, RS485, SENT, SMBus, SPI, UART (RS232), USB PD 3, USB1.1
Protocol Analyzer:
BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus, PMBus, Profibus, PWM, RS422, RS485, SMBus, SPI, UART (RS232), USB PD 3, USB1.1
