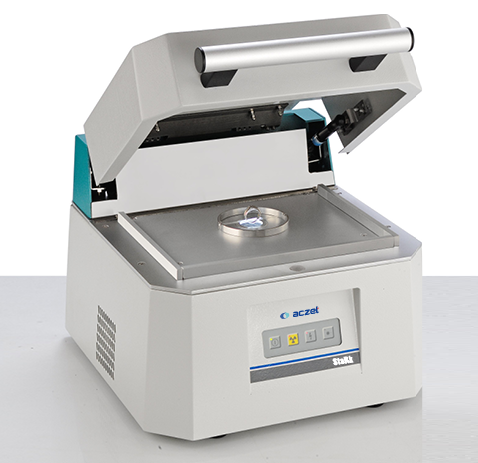

Aczet StaRk Xrf Gold Testing Machines (High resolution Gas Filed Prop Counter)

Measuring Direction: Bottom to Top

Applied Application: Gold & Silver Analysis in jewellery and alloys, Coating Thickness Measurement on Metals

X-ray Tube: Mini-focus,high performance, W-target, Spot 0.2mm-0.8mm

High Voltage: 50kV (1.2mA) Software Control Optimized

Detector: High resolution Gas Filed Prop Counter

Measurement Time: 60 sec. to 180 sec.

Collimator: 0.3mmØ or 0.5mmØ, Optional four positions Collimator changer

Sample Stage: Fixed Sample Positioning

Power Supply: 230VAC, 50/60Hz, 120W / 100W

Inside Chamber: 330 x 200 x 170 mm (WxDxH)

Dimension: 350 x 450 x 310 mm (WxDxH)

Weight: 32 kg
