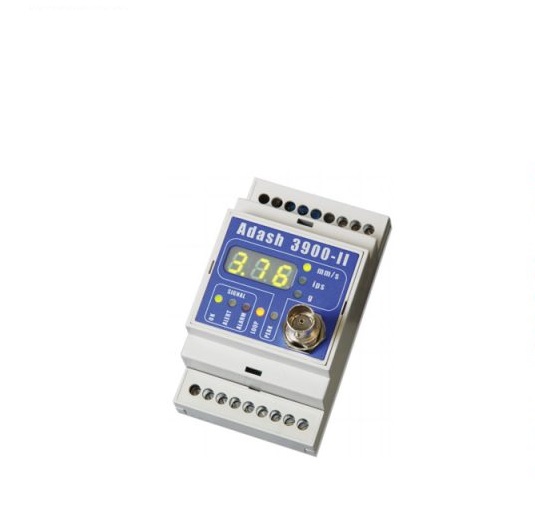

Adash A3900 1channel online system

Input: ICP® for vibration sensor 100 mV/g (ICP®powering)
Output:  Current loop 4 – 20 mA
Meas. Ranges: 0 – 3.2 g  ; 0 – 16 g  ;0 – 16 mm/s  ;   0 – 64 mm/s
Freq. Bands: 0.8 – 16 kHz ; 10 Hz – 1 kHz
Sensor:100 mV/g, ICP®powered
LEDs: PWR    check of power supply ;ICP® Err wrong sensor or cable
Supply: 20 - 28 V DC, possible external current loop supply up to 30 V DC (for long cables) ;max. 60 mA + loop current of 20 mA
Dimension:90 x 53 x 58 mm
Weight:  130 g

Details

datasheet

manual

The A3900 is a simple one channel online monitoring system. Measured value is displayed on the front panel and transferred to the control system through the 4-20 mA current loop output. The A3900 unit includes one programmable output “ALARM” relay.

Main features of A3900:
  • 1 channel, selectable value: [mm/s] / [ips] / [g]
  • Display of values
  • 4-20 mA current loop output
  • Relay output
  • Setup by PC
