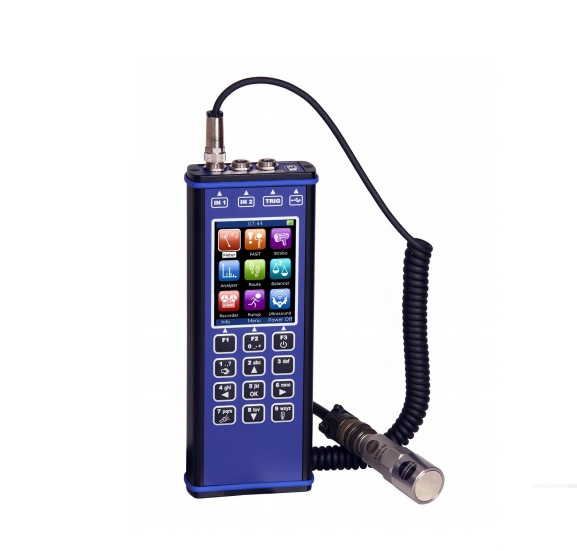

Product image

Adash A4300 - VA33-channel analyzer

ManufacturerAdash(View more products from this manufacturer)

ModelA4300 - VA33

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

-Input channels: 3 AC, ICP® power supply on/off; 3 DC for process values; 1 TACHO for external trigger
-Input range:
AC +/- 12 V peak-peak
DC +/- 24V
-AD conversion: 24 bit, 64 bit internal signal processing
No AutoGain function!
-Dynamic range S/N:120 dB
-Frequency ranges:
Maximum range: 1 Hz - 25 kHz (64 kHz sampling)
Minimum range: 1 Hz - 25 Hz (64 Hz sampling)
-Sampling mode:Fully simultaneous for 3 channels
-FFT resolution: Min. 25 lines; Max. 25600 lines
-Unit modes:
Analyzer - analytic measurement
Data collector - route measurement
Balancer
Recorder
Run Up
Ultrasound
LED stroboscope, LED torch
FASIT - Expert system for fault detection
Vibration meter
-Data processing:
Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
-IR temperature measurement: Range -70 ̊C to +380 ̊C -(94 ̊F to +716 ̊F)
-Trigger:Manual, External, Amplitude, Tacho
-Display:Colour 240 x 320 pixels, TFT
-Communication:USB
-Operating temperature range:-10 ̊C to +50 ̊C
-Power:Battery 10 hours of operation, AC 230 V
-Case: Aluminium heavy duty
-Weight: 780 g
-Dimensions: 230 x 82 x 32 mm

A4300 Module_Functions

A4300 VA3 Pro key features:

Ideal for route measurement
Long lasting battery
Low weight 780 g
Route memory: 8 GB
Colour display 240 x 320 px

Your own configuration: The A4300 VA3 Pro instrument can be configured according to your requirements by choosing optional modules e.g. analyzer, route, balancer. Optional modules can be purchased also additionally and downloaded to the instrument without the need of sending it back to the factory.

The A4300 VA3 Pro is the newest addition to our range of portable devices for vibration diagnostics. There are 2 signal inputs and 1 tacho/trigger input. Input 2 offers connectivity to a triaxial sensor, therefore all 3 channels can be measured simultaneously.

The expert system developed by Adash can automatically detect machine faults such as unbalance, looseness, misalignment and bearing faults. There is a non-contact IR temperature sensor (for immediate bearing temperature measurement) and a LED stroboscope/torch. The A4300 VA3 Pro is designed for one-handed operation. With a weight of just 780 g and a battery life of more than 10 hours of operation, the unit is suitable for long route measurements.
