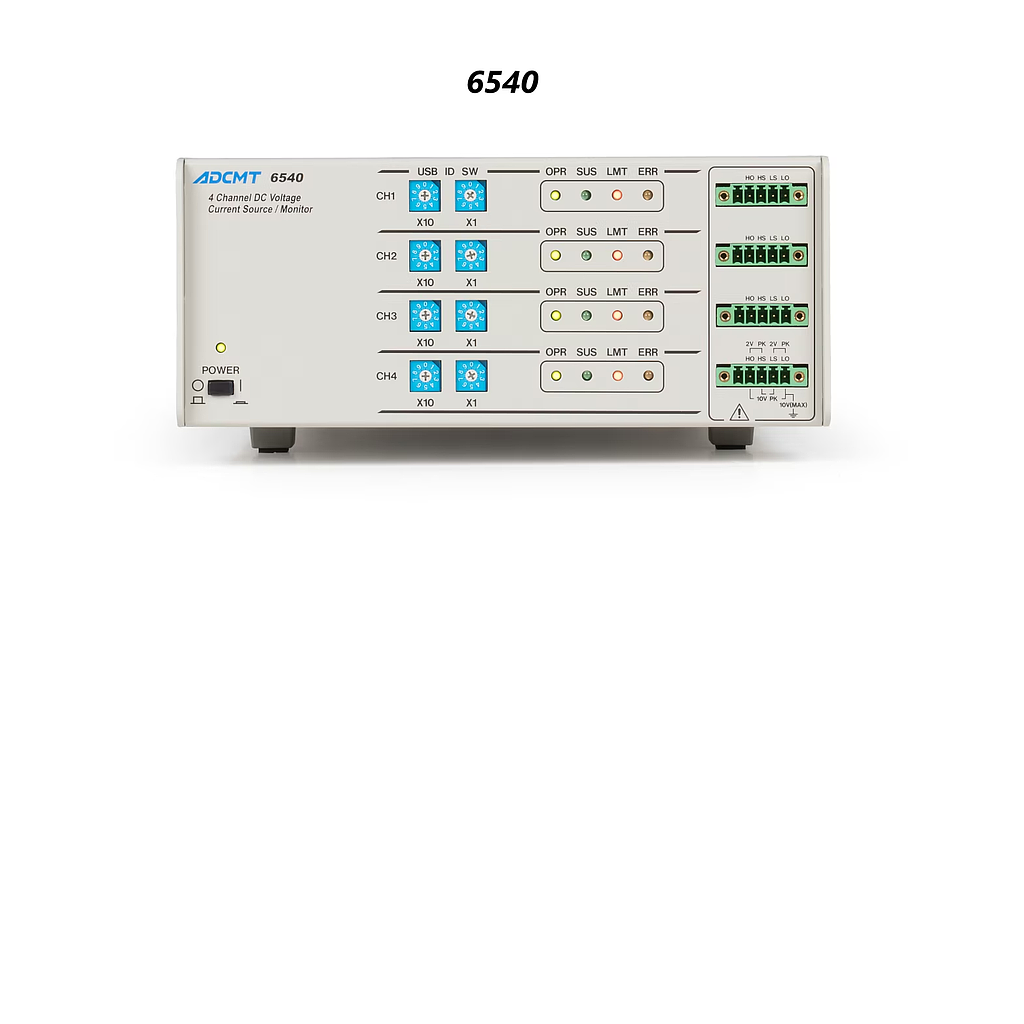

ADCMT 6540 4-Channel DC Voltage Current Source/Monitor (4CH; ±10 V / 500 mA)

Specifications

Number of digits for generation: 4½

Output method: Bipolar

Maximum output voltage: ±10 V / 500 mA (1 A for 4 channels)

Minimum voltage resolution: 100 μV

Maximum output current: ±500 mA / 10 V (1 A for 4 channels)

Minimum current resulution: 100 pA

Number of digits for measurement: 5½

Accuracy (typical range): 0.0002

Minimum measurement voltage resolution: 10 μV

Minimum measurement current resulution:  10 pA

Maximum measurement resistance / Minimum resolution: 5 GΩ/20 μΩ

Pulse application / Measurement: Available

Minimum pulse width: 50 μs

Display: None (LED indicators only)

Interface: USB port per channel; 4 USB ports in total

Supplied Accessories: :

Power cable (JIS 2 m): 1

Output connector: 4

Output connector cover: 4

Cable tie: 4
