Features

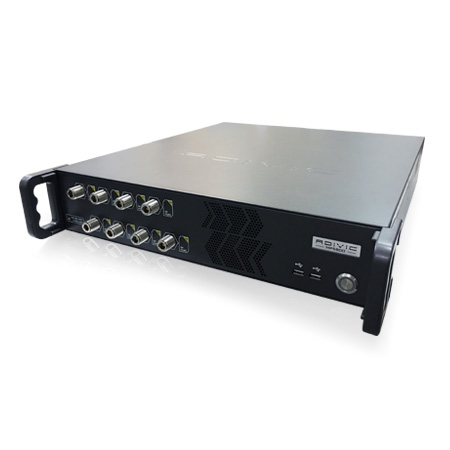

• MP5800/MP5806 seamlessly upgrades your existing Chroma 3380/3650 to RF ready ATE test solution.
• User friendly debug tools
• IOT turnkey test solution
• Able to generate complex waveforms to verify receiver performance
• VSA decodes complex modulation.
• Built in 802.11 & 802.15 Signal generator & analyzer
• Fully programmable VSA/VSG across 10MHz to 6ghz frequency.
• Intuitive tools to create custom waveforms
Function Features
• Software Defined Radio(SDR) architecture with VSG/VSA in one Box
• RF Port Support Bi-Directional & TX Broadcast function
• Support Wi-Fi/BT…etc. standards & General Purpose Modulation
• Build-in arbitrary waveform generator & Debug Tools
• Support Calibration Box for auto cable loss test & Power Meter function
• User friendly GUI for R&D/QA applications
• API for production automation programming

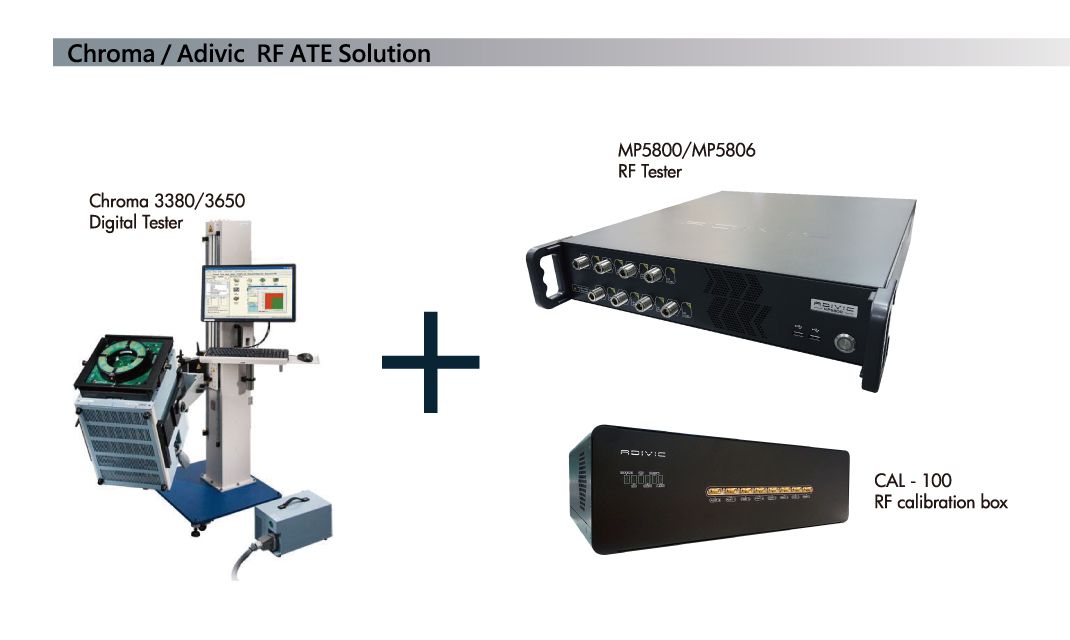

• Integrated with Chroma 3380/3650 to build a full RF/Digital ATE turnkey solution
Brochure
Major Applications
◎ IOT Applications
‧Wi-Fi 802.11a/b/g/n/ac/ax
‧luetooth V1.x/V2.x/V3.x EDR/BLE V4.x /V5.1
‧Zigbee
‧GNSS
‧NB-IoT
‧802.11ah, 802.11p, 802.11af…etc
◎ Converter Applications
‧TV Tuner, DVB Tuner, FM Tuner...etc
◎ PA / FEM Applications
‧PA , LNA, Switch…etc
Key Specifications
◎ RF Performance (MP5800/MP5806)
‧4/8 RF Port@ one tester
‧RF Bandwidth : 120MHz(160MHz option)
‧Frequency range : 10MHz ~ 6000MHz
◎ Digital Performance (3360/3380/3650/3680)
‧50/100MHz Clock Rate
‧Maximum 1024 I/O Pins
‧32/64/128MHz Pattern Memory
‧Maximum 128 CH DPS
‧SCAN/ALPG Function
‧Maximum 1024 DUT Parallel test
‧Flexible configuration
◎ Auto RF Calibration ( RF Calibration box)
‧Support automatic RF cable loss testing & Power Meter function
