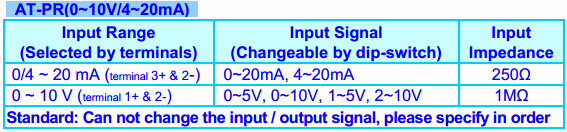

Input: DC Current 0/4~20mA, Voltage 0/1~5/10V (Choose DP-type，switchable)
Output: 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA / 0~20mA changeable by dip switches and terminals
Accuracy:
- ≦±0.2% of F.S.( delivered in customer’s specify)
- ≦±0.1% of F.S.( Option)
- ≦±2% of F.S.( By Dip-switch)
Response Time: ≤ 250msec
Power supply AC 85~265V/DC 100~300V, 50/60Hz
Operating temp.: 0~60 ºC
Protection: IP 42
Vibration: 1~800 Hz, 3.175 g2/Hz
Dimensions: 94.0mm(H) x 94.0mm(L) x 17.5mm(W)
Weight: 250g
