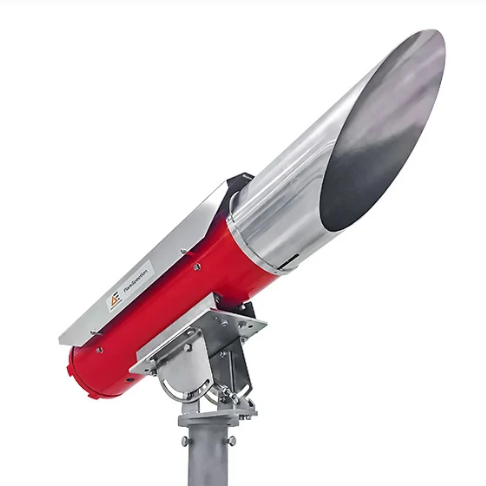

Advanced Energy FlareSpection Infrared Camera (200mm, 17μm)

- Image Update Rate: 9Hz
- A/D Resolution: 16 bit
- Pixel Pitch: 17μm
- Detector 640 x 480 Uncooled Microbolometer
Optical:
- Lens Focal Length: 200mm
- Field of View (FOV): 3° (H) x 2.3° (V)
- Digital Zoom: 1 to 8x using LumaSpec RT software
Interface:
- Network Connection: Gigabit Ethernet
- Power: 12 VDC and 24 VDC
Environmental:
- Operating Temperature: -30 ~ 50°C (-22 ~ 122°F )
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight: 38 kg (~84 lbs)
- Housing: 316L stainless steel suitable for hazardous areas
- Compliance: CE, RoHS
- Scope of Delivery: FlareSpection camera with 200 mm lens, FlareSpection stainless steel enclosure, adjustable, stainless steel pan-tilt mount, stainless steel base, and LumaSpec RT software.
