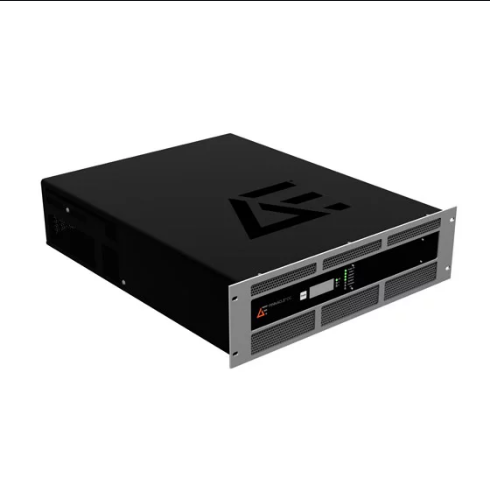

Advanced Energy Pinnacle DC Power System (6~20kW, 200~480VAC)

Electrical
- Input Voltage:
200/208, 400, or 480 VAC (all ±10%)
3, 4 wire, 50 to 60 Hz, no neutral required
- Efficiency: >87%
- Power Factor: >0.90 for loads > 2 kW
- Output Power Repeatability: 0.1% 10% ~ 100% of rated power (from run to run at a constant set point)
- Remote Panel or Host Port: ±1% of full-rated output
- User Port: 1% or ±0.2% of full-rated output, whichever is greater
- Temperature Coefficient: <0.005%/°C variation in the regulated output parameter over 20° ~ 40°C (68° ~ 104°F) ambient temperature range
- Product Line (Overall): Specification accuracy is Cpk <1.5
I/O Control
- Analog Interface Options:
37-pin isolated (~ 500 VRMS), 0 ~ 10 VDC analog, 0/24 VDC digital
37-pin, 0 ~ 10 VDC analog, 0/15 VDC digital
37-pin, 0 ~ 5 VDC analog, 0/15 VDC digital
- Serial Communication Options:
RS-232, RS-422, RS-485 (selectable baud rates up to 115.2 k)
Profibus (selectable baud rates of 1.5 or 12 MB); AE Bus protocol
DeviceNetTM option available
- Size:
3U: 128 mm (H) x 483 mm (W) x 574 mm (D) (5.25˝ (H) x 19˝ (W) x 25.18˝ (D))
4U: 177 mm (H) x 483 mm (W) x 574 mm (D) (7˝ (H) x 19˝ (W) x 22.6˝ (D))
- Weight: 21.3 kg (47 lb) ~ 32.2 kg (71 lb)
