Product Detail
AN23X series Module DC Electronic Load of broad-spectrum is widely used in testing power reliability, output voltage regulation and transient performance of the DC Power Supply and parameters test for charging and discharging procedures of capacitor, charger, battery etc. & power components.
★Adopt 16 bits high accuracy ADC (Analog-to-Digital Conversion) circuit and 32 bits high speed DSP(Digital Signal Processor),which improve accuracy and data processing speed
★One Single Case can hold 10 load channel, suitable for testing power supply with multi-channel output
★Each load module has independent LCD display, voltage, current and power which are all 5 digits displayed
★Able to be used as several sets of load in parallel with a module case and to carry out multiple synchronous load on application with paralleled load groups in static and dynamic operation mode
★0.8V voltage of load module can reach the max. rated current
★Short-circuit test, peak-to-peak value, OCP and OPP tests

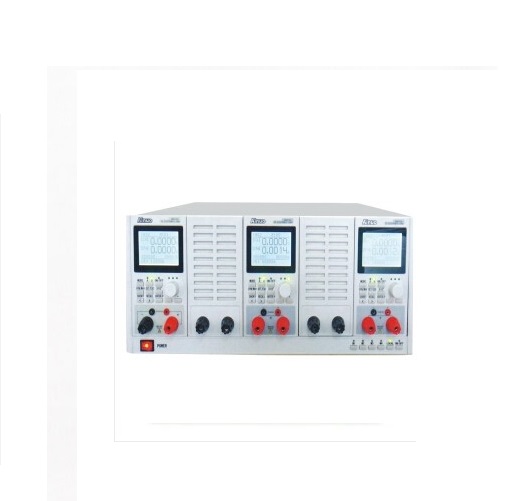

Double Channel DC Electronic Load Module Unit AN23202 (F)
|
Model |
AN23202(F) |
||||
|
Input range |
Input Voltage/Input Current/Input Power |
1~80V 0~20A 0~100W |
|||
|
CC Static |
Range/Resolution |
0~2A 0.5mA |
0~20A 5mA |
||
|
Accuracy |
±(0.1%of setting+0.1%of measurement) |
±(0.1%of setting+0.2%of measurement) |
|||
|
CR |
Range/Resolution |
0.075Ω~300Ω(100W/16V) 12bits |
3.75Ω~15kΩ(100W/80V) 12bits |
||
|
Accuracy |
300Ω:100ms+0.2%of setting |
5kΩ:10ms+0.1%of setting |
|||
|
CV |
Range/Resolution/Accuracy |
1~80V 0.020V ±(0.05%of setting+0.1%of measurement) |
|||
|
CP |
Range/Resolution/Accuracy |
1~100W 0.025W ±(0.5%of setting+0.2%of measurement) |
|||
|
CC Dynamic |
T1&T2 |
Range/Resolution/Accuracy |
0.025ms~10ms 1us 1us+100ppm |
1ms~30s 1ms 1ms+100ppm |
|
|
Slope |
Range/Resolution |
0.32~80mA/us 0.32mA/us |
3.2~800mA/us 3.2mA/us |
||
|
Short Circuit |
Short mode/Min. Short Resistance /Max. short Current |
FET switch 0.075Ω 20A |
|||
|
Measurement Display Accuracy |
DC Voltage/DC Current |
±(0.05%of reading+0.05%of measurement) |
|||
|
Power |
±(0.5%of reading+0.2%of measurement) |
||||
|
Dimension W×H×D |
84.5mm×153mm×534mm |
||||
