Output phase: 1 phase
Output power -AC power: 1000VA
1)Voltage
Amplitude/phase: 150V/300V/Auto
Accuracy: 0.2%+0.2%F.S.
2) Max current
Effective value (150V/300V): 8A/4A
Peak value: 48A/24A
3) Frequency: DC, 15 ~ 1kHz, 0.15%
4) Output DC
Power: 500W
Voltage: 212V/424V
Current(212V/424V): 4A/2A
5) Input
Voltage amplitude: 90~250V, 1φ
Rated frequency: 47~63Hz
Current: 16A Max
6) Voltage mesuarement: 150V/300V; 0.2%+0.2%F.S.
7) Current: 48A
Port: RS-232 (standard),GPIB(Optional)
Dimension （high*wide*deep: 134 x 483 x 610mm
Weight: 21 kg
Product Detail
Introduction

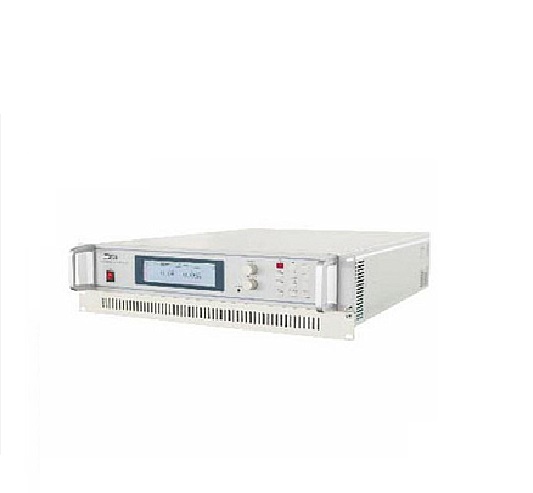

AN61 series AC testing power supply adopts advanced SPWM technology,DSP digital processing technology and high-power switching power supply technology,domestic leading and international advanced in the field of AC power supply. This series of power supply is suitable for general commercial products,power electronics,aviation electronics,military and regulatory test, covering the range from bench tests to production line.
AN61 series AC test power supply have high quyality AC,DC,AC+DC power output mode,providing ing precise power to AC/DC and rectifier load.
It can simulate voltage dips,short interruption,voltage variations immunity,harmonics or inter-harmoics
AN61 series AC testing power adopts advanced Digital Signal Processing(DSP) technology for accurate and rapid measuring of electrical parameters and harmonics,including Voltage Root Mean Square(Vrms),Current Root Mean Square(Irms),True Power,frequency(HZ),Power Factor(PF),current Crest Factor(CF) and 40-order current harmonics.
AN61 series AC testing power adopts pulse width modulation(PWM) technology to provide 6 times of peak current,forming the best test instrument for measuring inrush current.This AC testing power can set the angle of waveform switch machine for the test inrush current and output holding time,and also set the rates of change of the voltage and frequecy,so as to scan the power input specification for the object under test.
With versatile programmable waveforms,The series of AC test power can be used for IEC 61000-4-11(test before certification)/-4-13/-4-14/-4-28 regulation immunity test ,in additon,it can output programmable impedace,which can be used for IEC 61000-3-2/-3-3 harmonic current limits and flicker test together with power analyzers.This serise AC testing power becomes the best choice for IEC regulation test.
Main features
Advanced SPWM,DSP and high-power switching power supply,high power density
AC/DC/AC +DC output mode
Programmable output impedance for IEC61000-3-3 test
IEC61000-4-11,IEC6100-4-14,IEC6100-4-28 voltage/frequency change test
IEC61000-4-13 harmonic/sub-harmonic waveform synthesis test
High output peak current for surge current test
Pulse output for voltage disps test and simulation actual grid interference
Step output.The Step test mode provides automatic switch to change the output voltage step by step instead of gradually.
List output. In sequence test mode,the output waveform is the combination of all serial number configuration.The user can edit the desired output voltage sequence on demand.
Analog signal input interface for amplificaiton of external signal
LCD display,compact,light,meeting requirements of standard cabinet installation
Parallel and Online for high-power test and 3-phase output
RS-232C/GPIB(optional)
Easy-to-use PC software(optional)
Spec.
Technical Specification
<td style="border:solid #3366FF 1.0pt;background:white;padding:0
|
Model |
AN61500(F) |
AN61501(F) |
AN61502(F) |
AN61504(F) |
AN61800(F) |
AN61801(F) |
AN61802(F) |
AN61804(F) |
|
Output phase |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Output power -AC power |
500VA |
1000VA |
2000VA |
4000VA |
500VA |
1000VA |
2000VA |
4000VA |
|
amplitude/phase |
150V/300V/Auto |
|||||||
|
accuracy |
0.2%+0.2%F.S. |
|||||||
|
Resolution ratio |
0.1V |
|||||||
|
Degree of distortion |
0.3% @ 50/60Hz 1% @ 15-1kHz |
|||||||
|
source voltage effect features |
0.1% |
|||||||
|
Load effect features |
0.2% |
|||||||
|
Effective value(150V/300V) |
4A/2A |
8A/4A |
16A/8A |
32A/20A |
4A/2A |
8A/4A |
16A/8A |
32A/20A |
|
Peak value |
24A/12A |
48A/24A |
96A/48A |
192A/96A |
24A/12A |
48A/24A |
96A/48A |
192A/96A |
|
Amplitude |
DC, 15 ~ 1kHz |
|||||||
|
accuracy |
0.15% |
|||||||
|
Resolution ratio |
0.1 Hz |
|||||||
|
Power |
250W |
500W |
1000W |
2000W |
250W |
500W |
1000W |
2000W |
|
Voltage |
212V/424V |
212V/424V |
212V/424V |
212V/424V |
212V/424V |
212V/424V |
212V/424V |
212V/424V |
|
Current(212V/424V) |
2A/1A |
4A/2A |
8A/4A |
16A/8A |
2A/1A |
4A/2A |
8A/4A |
16A/8A |
|
Amplitude |
0Ω +200µH ~ 1Ω +1mH |
|||||||
|
Bandwidth |
2400Hz |
2400Hz |
2400Hz |
2400Hz |
- |
|||
