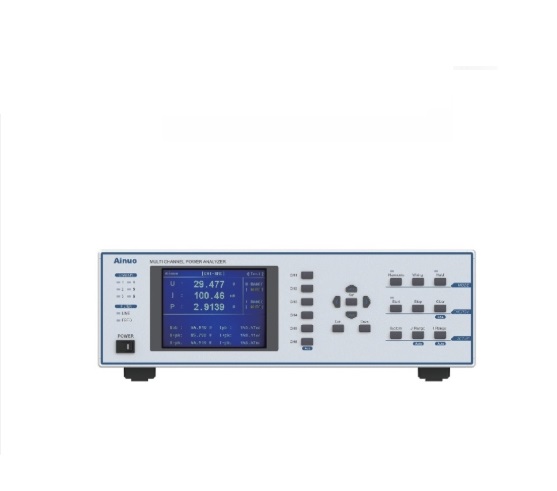

Channel: 1~6
Wire connection type: 1 phase 2 wires, 1 phase 3 wires, 3 phase 3 wires, 3 phase 4 wires
Measurement parameters: U, I, P, Q, S, λ, Φ, f,ph, Pavg,Pint,η, Wh,Ah, 50 harmonic analysis,THD,Isurge, Vpk, Ipk,PF
Input impendence
+ Voltage: 2MΩ
+ Input current: 10mΩ
+ Sensor input current: 100kΩ
Voltage rated Range
+ Crest Factor 3:15.000V, 30.000V, 60.000V, 100.00V, 150.00V, 300.00V, 600.00V, 1000.0V
+ Crest Factor 6:7.500V, 15.000V, 30.000V, 50.000V, 75.000V, 150.00V, 300.00V, 500.0V
Current rated range
+ Crest Factor 3:100.00mA, 200.00mA, 500.00mA, 1.0000A, 2.0000A, 5.0000A, 10.000A
+ Crest Factor 6:50.000mA, 100.00mA, 250.00mA, 500.00mA, 1.0000A, 2.5000A, 5.0000A
Current/voltage measurement accuracy: (1%~110%) of range
Voltage measurement accuracy: DC: ±(0.1% ×reading+0.1% × range); 0.5Hz≤f<45Hz: ±(0.1% × reading+0.2% × range); 45Hz≤f≤66Hz: ±(0.1% × reading+0.1%× range); 66Hz<f≤1kHz: ±(0.1% × v+0.2% × range); 1kHz<f≤10kHz: ±({0.1+0.05×(f-1)}% × reading+0.2% × range)
Current measurement accuracy: DC: ±(0.1% × reading+0.1% × range); 0.5Hz≤f<45Hz: ±(0.1% × reading+0.2% × range); 45Hz≤f≤66Hz: ±(0.1% × reading+0.1% × range); 66Hz<f≤1kHz: ±(0.1% × reading+0.2% × range); 1kHz<f≤10kHz: ±((0.1×f)% of reading+0.2% × range)
Active power measurement accuracy: DC: ±(0.1% × reading+0.1% ×range); 0.5Hz≤f<45Hz: ±(0.3% ×reading+0.2% × range); 45Hz≤f≤66Hz: ±(0.1% × v+0.1% × range); 66Hz<f≤1kHz: ±(0.2% × reading+0.2% × range); 1kHz<f≤10kHz: ±({0.2+0.1×(f-1)}% of rdg+0.2% × range)
Frequency range: DC,0.500Hz ~ 10.00kHz/ ±0.1% × range
Harmonic Measurement: 20Hz~400Hz,1~50th,THD
Interface: Standard RS232, remote, optional RS485, GPIB
Display: 5.7-inch Color LCD
Dimension: 426(W) x 132.5(H) x 500(D) mm
Trọng lượng: 15 kg
Product Detail
Main features
* Multiple channel:1-6 channel measuring element configuration,flexibly configured as multi-channel single-phase,3P3W*2, 3P4W*2,4-phase
(DC+3P3W) and other models for measuring of various loads(air conditioners,inverters,frequency converters,motors);
* High precision:high-speed DSP processors,high-speed high-precision 16-bit AD converter,basic accuracy up to 0.1%,up to 100ms displayupdate cycle;
* Wide power:A single-channel can measure current up to 50A(optional 20A,10A,5A,2A,1A and other specification,and supprot theircombination), minimum power resolution of 0.1mW,meet the requirements for standby power measurements and rated power measurement;
* Wide bandwidth:AC/DC signals,power measurement bandwidth DC,0.5HZ-100kHZ,suitable for measurement of various standard and non-standardsine load power;
* Multi harmonics:6-channel harmonics analysis simultaneously,measurement of up to 50th harmoics,distortion analysis, visual display ofindividual harmonic content and total contents;
* Multi frequency:6-channel frequency measurement simultaneously;
* line filter:500HZ,5.5kHZ low-pass filter,measure the fundamental value of PWM waveform,filter out high frequency interference;
* Sensor:scaling function,support conventional I-I/V-V type voltage/current transformer;,BNC interface I-V current sensor, maximum inputvoltage of 10v, optional large-current sensor;
* Efficiency calculation:simultaneously measuring of I/O energy consumption,and calculate the efficiency;
* Cumulative energy:forward,reverse and integrated electric energy can be accumulated separately for energy trading measurement;
* Threshold alarms:independently setting of 10 groups of voltage,currents,power,power factor and other thresholds for each
channel,automatically determining of upper/lower limits and alarm;
* Chinese/English interface:Chinese/English interface and time/date display
Spec.
|
Model |
AN87500-5x(F) |
AN87500-1x(F) |
|
Channel |
1~6 |
|
|
Wire connection type |
1 phase 2 wires, 1 phase 3 wires, 3 phase 3 wires, 3 phase 4 wires |
|
|
Measurement parameters |
U, I, P, Q, S, λ, Φ, f,ph, Pavg,Pint,η, Wh,Ah, 50 harmonic analysis,THD,Isurge, Vpk, Ipk,PF |
|
|
Input impendence |
Voltage: about 2MΩ Input current:about 2.5mΩ Sensor input current:about 100kΩ |
Voltage: about 2MΩ Input current:about 10mΩ Sensor input current:about 100kΩ |
|
Voltage rated Range (Direct input) |
Crest Factor 3:15.000V, 30.000V, 60.000V, 100.00V, 150.00V, 300.00V, 600.00V, 1000.0V Crest Factor 6:7.500V, 15.000V, 30.000V, 50.000V, 75.000V, 150.00V, 300.00V, 500.0V |
|
|
Current rated range (Direct input) |
Crest Factor 3:500.00mA, 1.0000A, 2.0000A, 5.0000A, 10.000A, 20.000A, 50.000A Crest Factor 6:250.00mA, 500.00mA, 1.0000A, 2.5000A, 5.0000A, 10.000A, 25.000A |
Crest Factor 3:100.00mA, 200.00mA, 500.00mA, 1.0000A, 2.0000A, 5.0000A, 10.000A Crest Factor 6:50.000mA, 100.00mA, 250.00mA, 500.00mA, 1.0000A, 2.5000A, 5.0000A |
|
Current rated Ranges (sensor input) |
Crest Factor 3:50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V, 10V Crest Factor 6:25mV, 50mV, 100mV, 250mV, 500mV, 1V, 2.5V, 5V |
|
|
Current/voltage measurement accuracy |
(1%~110%) of range |
|
|
Power factor range |
±(0.001 ~ 1.000) |
|
|
Voltage measurement accuracy |
DC: ±(0.1% ×reading+0.1% × range) 0.5Hz≤f<45Hz: ±(0.1% × reading+0.2% × range) 45Hz≤f≤66Hz: ±(0.1% × reading+0.1%× range) 66Hz<f≤1kHz: ±(0.1% × v+0.2% × range) 1kHz<f≤10kHz: ±({0.1+0.05×(f-1)}% × reading+0.2% × range) |
|
|
Current measurement accuracy |
DC: ±(0.1% × reading+0.1% × range) 0.5Hz≤f<45Hz: ±(0.1% × reading+0.2% × range) 45Hz≤f≤66Hz: ±(0.1% × reading+0.1% × range) 66Hz<f≤1kHz: ±(0.1% × reading+0.2% × range) 1kHz<f≤10kHz: ±((0.1×f)% of reading+0.2% × range) |
|
|
Active power measurement accuracy |
DC: ±(0.1% × reading+0.1% ×range) 0.5Hz≤f<45Hz: ±(0.3% ×reading+0.2% × range) 45Hz≤f≤66Hz: ±(0.1% × v+0.1% × range) 66Hz<f≤1kHz: ±(0.2% × reading+0.2% × range) 1kHz<f≤10kHz: ±({0.2+0.1×(f-1)}% of rdg+0.2% × range) |
|
|
Power resolution |
0.0001W |
|
|
Frequency range |
DC,0.500Hz ~ 10.00kHz |
|
|
Frequency measurement accuracy |
±0.1% × range |
|
|
Harmonic Measurement |
20Hz~400Hz,1~50th,THD |
|
|
Energy range |
0~999999MWh |
|
|
Energy measurement accuracy |
±1% of reading (Exceed 1.0000kWh) |
|
|
Filter function |
500Hz, 5.5kHz voltage wires, current wires and frequency filter |
|
|
Ratio function |
1~5000 |
|
|
Display updating intervals |
100m / 200m / 500m / 1 / 2 / 5 s |
|
|
Alarming function |
U, I, P, λ with Hi, Lo and door limit |
|
|
Interface |
Standard RS232, remote, optional RS485, GPIB |
|
|
Display |
5.7-inch Color LCD |
|
|
Dimension |
426(W) x 132.5(H) x 500(D) mm |
|
|
Bracket height |
14 mm |
|
|
Weight |
About 15 kg |
|
