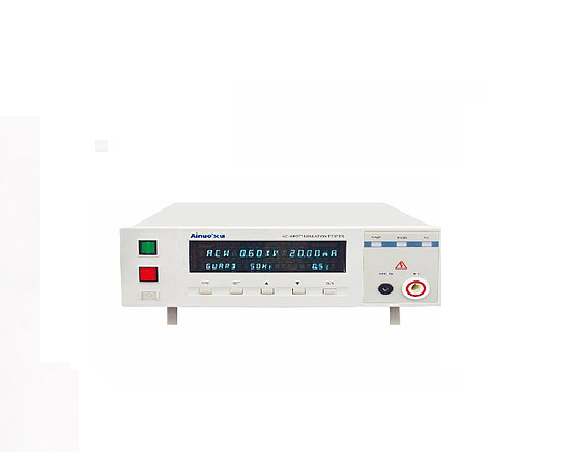

1) AC Hipot Test
Rated Output: 100VA (AC: 5kV/20mA)
Output Voltage Set and Range: 0.2kV～5.00kV AC, 10V/step
Output Frequency Range: 50Hz, 60Hz (optional)
Output Waveform: Sine waveform, pure resistance, above 200V, distortion <5%
Upper and Lower Limit Leakage Current Setting:
+ AC: Upper: 0.10～20.00mA
+ Lower: 0.10～20.00mA(0=disable), 0.01mA/step
Breakdown Current Measurement Range: 0.100～3.499mA/3.50～20.00mA
Test Time Setting Range: 1.0～999.9S
Test Time Setting Range/Resolution: 1.0～999.9s (LLL=continues) 0.1s/step
Test wire compensation: 0～0.500mA, manual clear offset
2) Insulation Resistance Test
Output Voltage Setting and Measurement Range: 100V ～1000V DC 5V/step
Test Time Setting Range: 1.0～999.9s 0.1s/step
Lower limit of Insulation Resistance: 1～2000M
Upper limit of Insulation Resistance: 1～2000M (0=off)
Insulation Resistance Range: 1～2000M, auto shift level
Interface: RS232(RS485 optional), Remote control(PLC)
Dimension W×H×D(mm): 320×110×400
Product Detail
Main features
* Latest international standard:Comply with CCC,IEC,EN,VDE,BS,UL,JIS standard requirements.
* Voltage ramp up/down,satisfy latest industrial standard requirements
* Breakdown current upper/lower limit setting,intelligent judgment,sound and light alarm
* AC 50/60HZ output
* Over voltage,over current protection,manual test wires compensation
* VFD display,simple operation
* Remote,RS232/485 interface
* Satisfy low voltage distribution industry latest requirements
Spec.
|
Model |
AN9602X(F) |
AN9605X(F) |
AN9632X(F) |
AN9671X(F) |
|||
|
AC Hipot Test |
Rated Output |
500VA |
100VA(AC: 5kV/20mA) |
||||
|
Output Voltage Set and Range |
0.2kV～5.00kV AC,100mA 10V/step |
0.2kV～5.00kV AC, 10V/step |
|||||
|
Output Voltage Adjustable Rate |
±(2.5% of setting+10V) |
||||||
|
Output Voltage Resolution/Accuracy |
10V, ±(2.5% of setting+10V) |
||||||
|
Output Frequency Range |
50Hz, 60Hz (Optional) |
||||||
|
Output Waveform |
Sine waveform, pure resistance, above 200V, distortion <5% |
||||||
|
Upper and Lower Limit Leakage Current Setting |
AC: Upper: 0.10～100.00mA, Lower:0.10～100.00mA(0=disable), 0.01mA/step |
AC: Upper: 0.10～20.00mA, Lower:0.10～20.00mA(0=disable), 0.01mA/step |
|||||
|
Breakdown Current Measurement Range |
0.100～3.499mA/3.50～100.00mA |
0.100～3.499mA/3.50～20.00mA |
|||||
|
Breakdown Current Accuracy |
±(2.5% of reading+5 counts) |
||||||
|
Ramp-up Time Setting Range/Resolution |
1.0～999.9s (0=disable) 0.1s/step |
||||||
|
Test Time Setting Range/Resolution |
1.0～999.9s (LLL=continues) 0.1s/step |
||||||
|
Test wire compensation |
0～0.500mA, manual clear offset |
||||||
|
Insulation Resistance Test |
Output Voltage Setting and Measurement Range |
100V ～1000V DC 5V/step |
|||||
|
Output Voltage Resolution/Accuracy |
1V , ±(3% of setting+5V) |
||||||
|
DC Ripple Coefficient |
≤5% (1kV DC, <1mA, resistance load) |
||||||
|
Output Voltage Adjustable Rate |
±(3% of setting+5V) |
||||||
|
Test Time Setting Range |
1.0～999.9s 0.1s/step (LLL= continues) |
||||||
|
Lower limit of Insulation Resistance |
1～2000M |
||||||
|
Upper limit of Insulation Resistance |
1～2000M (0=off) |
||||||
|
Insulation Resistance Range |
1～2000M, auto shift level |
||||||
|
Insulation Resistance Accuracy |
500～1000V: ±(3% of reading+8counts) 1～200M; |
||||||
|
Interface Function |
RS232(RS485 optional), Remote control(PLC) |
||||||
|
Dimension W×H×D(mm) |
450×150×440 |
320×110×400 |
|||||
