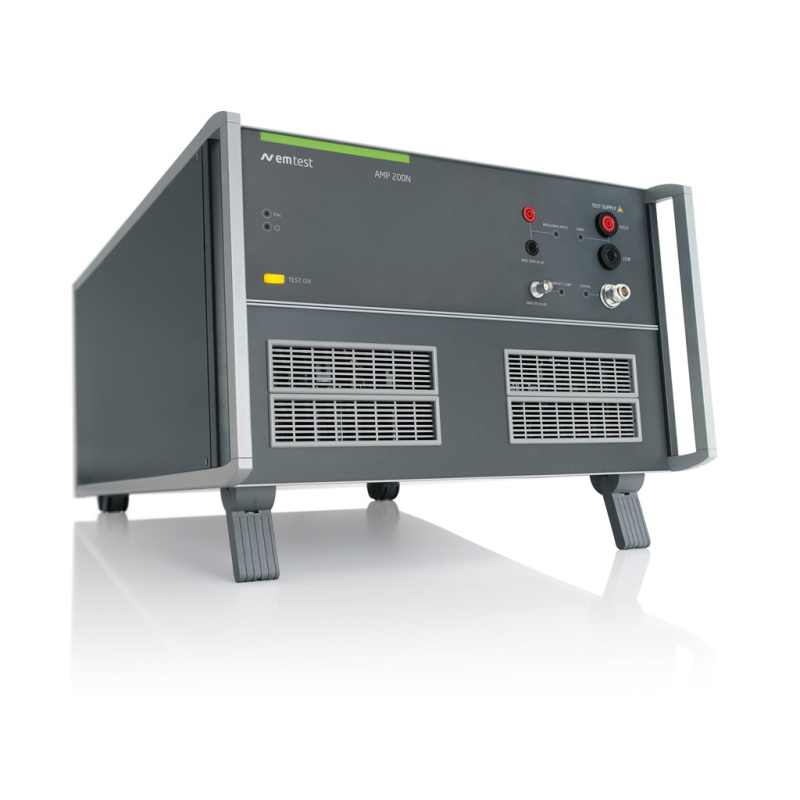

AMETEK CTS AMP 200N2 Audio Amplifier (500 kHz; 160 V pp / 50 V rms; 18 A rms)

Audio Amplifier

Amplifier Output

Frequency Range: DC ... 500 kHz (sinusoidal) +/- 1 %

Signal Power: max. 1000 W (nominal)

Output Voltage: max. 160 V pp / 50 V rms

Output Current: max. 18 A rms

DC current: max. 25 A (DC H-field)

Bandwidth:

Full Signal Range: DC - 100 kHz /// max. 50 V rms / 160 Vpp (+/- 10 %) *

Extended Range 1: 100 kHz - 250 kHz /// max. 30 V rms / 80 Vpp (+/- 10 %) *

Extended Range 2: 250 kHz - 500 kHz /// max. 30 V rms / 80 Vpp (+1 dB / -3 dB) *

Low Range: 25 V pk / 17 V rms / max. 18 A rms (+/- 10 %)

Mid Range: 55 V pk / 37 V rms / max. 14 A rms (+/- 10 %)

High Range: 80 V pk / 55 V rms / max. 10 A rms (+/- 10 %)

Output Impedance: 30 mΩ @ 1 kHz

Measuring Inputs

Frequency Range:10 .... 250 kHz (+/- 5%)

Current Measurement: With external current clamp:

Range 100 mV/A: 1 mA - 30 A rms

Range 10 mV/A: 10 mA - 300A rms

Voltage Measurement: direct: 17 mV - 70V rms (or wih external voltage probe)

General Data

Interface: Serial interface Framebus (internal bus), to connect to AutoWave or NetWave

Dimension: 19", 6 HU (500 x 449 x 286 mm)

Weight: approx. 40 kg

Supply Voltage:

115 VAC +10/-2 %, 50 ... 60 Hz

230 VAC +10/-15 %, 50 ... 60 Hz

Input Power: max. 1900 VA

Fusage: 16 AT (115 V) / 10 AT (230 V)

Safety:

Short circuit protected

Overtemperature protected, active air cooling by fans

Operating Temperature: +10 ... 40 °C

Humidity: max. 85 %, non condensing

Athmospheric pressure: 860 ... 1060 mbar

* Only signal generating, without using closed loop method
