Sensor: 3 Piezoelectric Transducers
Range:
Acceleration: 0.1~400.0 m/s² Equivalent Peak; 0.3~1312 ft/s²; 0.0~40 g
Velocity: 0.01~400.0 mm/s True RMS; 0.004~16.00 inch/s
Displacement: 0.001~4.000 mm Equivalent Peak-Peak; 0.04~160.0 mil
Frequency Range:
Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Displacement: 10Hz~1kHz
Accuracy: ±5% of reading ±2 digits
Operation Conditions: Temperature 0~50°C (32~122°F); Humidity <90%RH
Power Supply: 4 × 1.5V AAA Um-4 Battery
Size (Main Unit): 140 × 70 × 31 mm (5.5 × 2.8 × 1.2")
Weight (Main Unit): 130 g (4.59 oz) (without batteries)

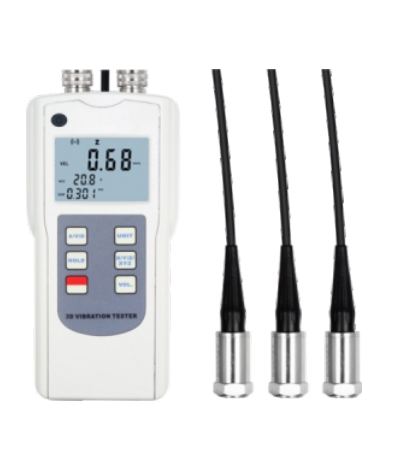

Accessories: Main Unit, 3 Piezoelectric Transducers, Powerful rare earth magnet, Stinger probe (Cone), Stinger probe (Ball), Carrying Case, Operation Manual; Optional: Headphones, USB Cable & Software (See Page 4), Bluetooth Adapter & Software (See Page 4)
