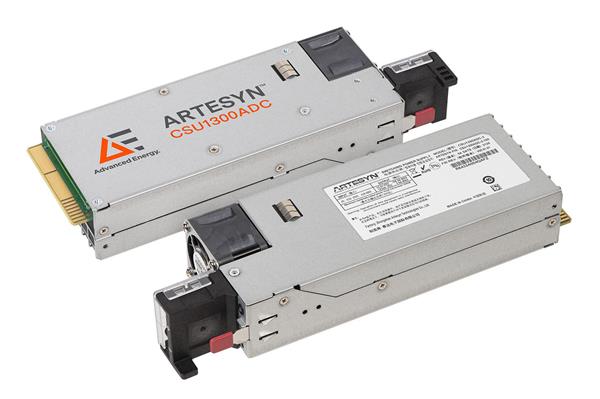

Artesyn CSU1300ADC-3-101 AC/DC Output Modules 12.2V and 12Vsb, 48V Input, 1300W 1U x 2.89 x 7.28 Platinum, reverse air
Manufacturer: Artesyn Model: CSU1300ADC-3-101 - Contact
Width: 73.5 mm
Height: 39 mm
Length: 185 mm
Industry: Industrial
Dimensions: 185 mm X 73.5 mm X 40 mm
Output Power: 1.3 kW
Input Voltage: - 40 VDC to - 72 VDC
Mounting Style: Chassis
Load Regulation: Regulated
Number of Outputs: 1 Output
Input Voltage - Max: - 40 V
Input Voltage - Min: - 72 VDC
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 106.5 A
Output Voltage-Channel 1: 12.1 V
Maximum Operating Temperature: + 55 C
Minimum Operating Temperature: 0 C
