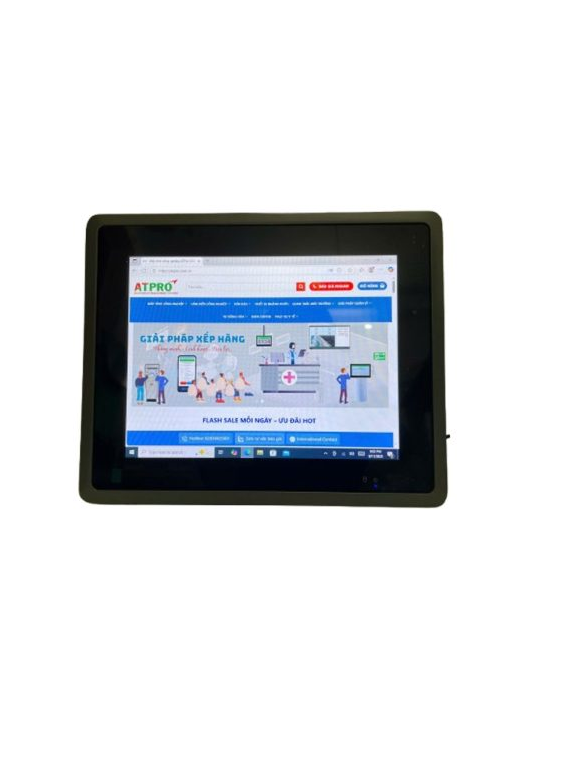

ATPRO SK-10.4A Industrial Computer with Integrated Touchscreen

Motherboard

CPU: Intel Core i5 7th Generation

Memory: 8 GB

Storage: 256 GB SSD

Interface

WiFi, 3G/4G module: 802.11b/g/n, supports 3G/4G

HDMI: 1 × HDMI output port

USB: 4 × USB (more options available)

Network: 1 × RJ45 with 1000BASE-T

COM: Supports COM1 and COM2, adjustable to RS485; 2 or 4 additional RS232 ports can be added

Power Supply: 1 × DC port, supports 12V/24V

Audio Output: 1 × 3.5 mm TRS port

Others: 8 × GPIO (optional)

Display

Screen Type: LCD screen with LED backlight

Resolution: 1024 × 768

Contrast Ratio: 1000:1

Brightness: 350 cd/m²

Screen Ratio: 4:3

Structure

Material of front and back cover: Aluminum

Craft: Glass frame bonding, aluminum die casting

Heat Dissipation: Heat sink

Color: Grey

Panel Indicator Lights: Power status, hard disk status

Overall Dimensions: 281 × 228 × 67.2 mm

Touch Screen

Touch Type: Capacitive touchscreen

Touch Points: 10-point touch

Physical Resolution: 4096 × 4096

Response Time: <5 ms

Accuracy: <2.5 mm

Transparency: ≥90%

Protection: Surface coated with 1:1 PVC protective film

Others

Operating Temperature: -20°C to 65°C; Humidity: 10%–90%

Storage Temperature: -40°C to 80°C; Humidity: 10%–90%

Installation Method: Embedded panel type, VESA 100 × 100 mm

Power Consumption: 45 W

Weight: Net weight: 5 kg
