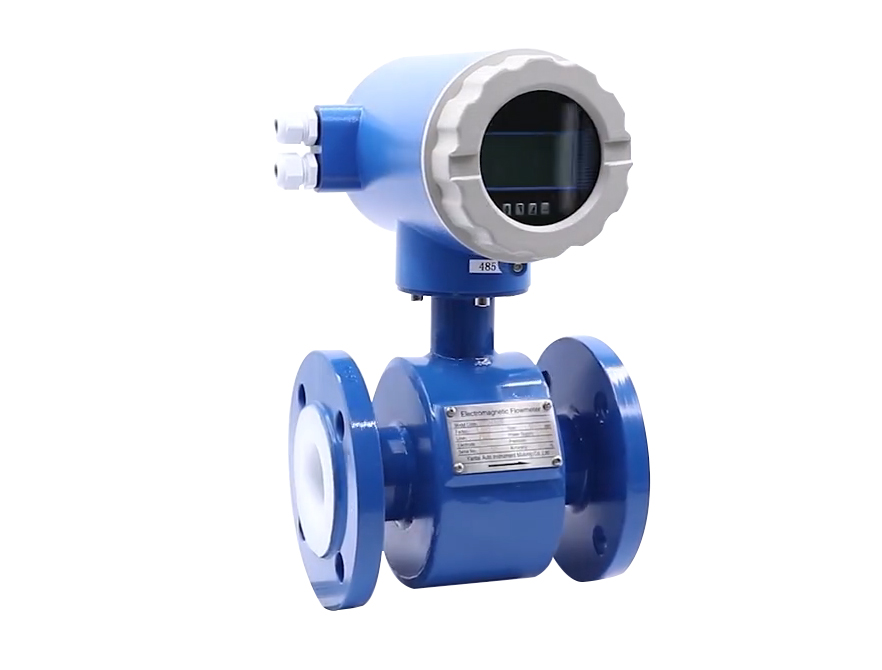

Auto Instrument DN10~DN2000mm Electromagnetic Flow Meter

 Pipe size: DN10~DN2000mm

Medium: conductive liquid,slurry

Conductivity: ≥ 5 μS/cm

Accuracy:  ±0.5%, ±1.0%

Repeatability: ±0.1%

Rated Pressure:  0.25, 0.6, 1.0, 1.6, 4.0MPa (or specified by customer)

Display: Instantaneous flowrate, total flow, velocity, flowrate percentage with back light

Signal output:  4~20mA current output, pulse output, RS-485, Hart, Profibus-DP

Power supply: 220VAC, 24VDC

Convert type: Compact, remote

Protection grade: IP67/ IP68

Explosion proof: Ex deibmb IIC T3~6

Velocity: 0.3 ~ 12m/s( 0.1 ~ 15m/s as required)

Liner: Chloroprene Gum (DN50 ~ DN3200) / Polyurethane (DN25 ~ DN500) / F4 (PTFE) (DN25 ~ DN1600) / F46 (FEP) (DN10~DN200) / PFA (DN10~300)

Flowing direction: Forward, Reverse

Electrode material: 316L, Pt, Ta, Ti, HB, HC, WC

Electrode type: Standard fixed type, blade type

Electrode numbers: 4 ~ 6 pcs

Flange material: SS / CS

Alarm(normal open): Empty, excitation, upper / lower  limit

Ambient: -25 ~ +60oC, Humidity: 5 ~ 90%

Communication: RS-485 / Hart / Profibus-DP

Read the documentation carefully before ordering
