Pump Speed: 5 L/min
Vacuum degree: 10Pa
Motor power: 20 W
Motor type: Brushless DC Motor
DC voltage: 12 VDC
AC input voltage to power adapter: 100 - 240 VAC
Maximum speed: 3600 RPM
Vaportolerance: Unlimited
Maximum outletpressure: 1 barg
Noise level: 56 dB(A)
Weight(without case): 1.1kg
Weight (with case): 1.7 kg
Dimensions(without case): 182×88×100mm
Dimensions(With case): 177×132×122mm
Inlet/Outletinterface (Withoutcase): G1/8
Inlet/Outletinterface (Withcase): G1/4, G1/8
Cooling system: Air -Cooled
Ambient temperature: -40ºC to 50ºC
SCOPE OF DELIVERY

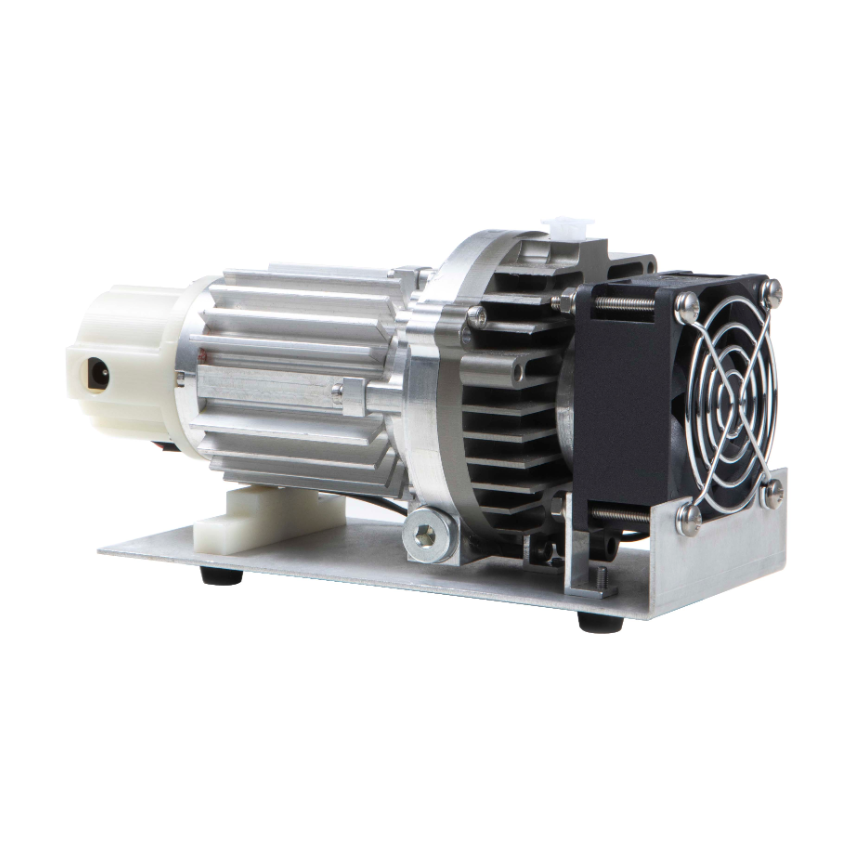

BL531 Portable electric vacuum pump
User manual
FEATURES
Floating Scroll Technology
100% Oil free
Maintenance free
Compact size ideal for portable equipment
APPLICATION
Aerospace and Satellite Applications
Fuel Cell–Stationary and Mobile
Industrial Air Compressors
Clean Integrated Air For CNC and CMM
Nitrogen, Helium, Natural Gas, CO2,
Gas Pressure Boosters
High and Low Vacuum Pumps
Steam Expansion and Recompression
Medical Air, Vacuum and Ventilation
Dental Air, Vacuum and Ventilation
Laboratory and Clean Room
Food Service
Cryogenics
Mass Spectrometry and Leak Detection
Automotive Power and Auxiliary System
