Temperature range: -40℃ to 100℃
Aperture diameter: 50 mm (1.97 inch)
Heated emitter shape:Spherical
Emissivity: better than 0.998
Display Resolution:0.01℃
Stability (10min): ±0.1℃ or 0.1%rd (whichever is great)
Uniformity: 0.15℃ or 0.15%rd (whichever is great)
Tube depth: 340mm
Control method: PID
Temperature Sensor: PT100
Power Supply: 220V AC / 4000WA
Interface: RS232
Cool down time: 2 hours from ambient to -50℃,
Heat up time: 1 hour from ambient temp. to 100℃.
Media: Oil
Calibration Method: Pyrometric
Dimension (LDH): 550 x 850 x 1100mm
Net Weight: 120 kg approx.
SCOPE OF DELIVERY

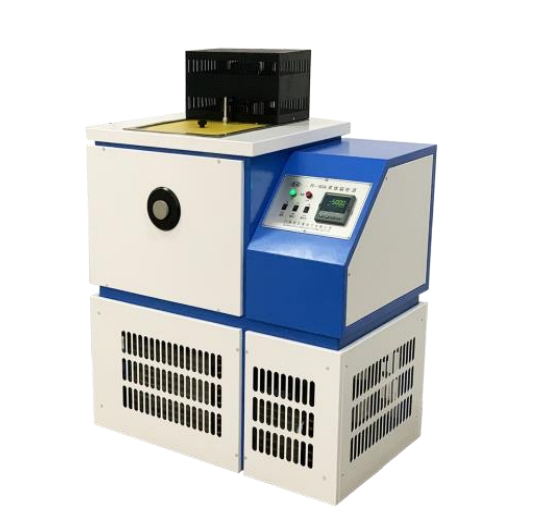

BL682 Low temperature blackbody calibrator
Power cord
User manual
Datasheet
The BL682 is a low temperature black body calibration source utilizing a digital indicating temperature low to -50℃. A precision PT100 temperature sensor is embedded in the black body emitter, providing high accuracy and repeatability. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within 0.1℃ of the set points. The black body emitter mechanism uses a resistive heating device that provides a long life, short stabilization times, and stable temperature control.
FEATURE
Temperature is low to -50℃.
Emissivity is better than 0.998
Stability is 0.1℃.
Uniformity is 0.15℃
50 mm aperture diameter
Build-in temperature correction function
TYPICAL APPLICATION
Infrared temperature sensors
Infrared thermal imaging systems
Spectrographic analyzers
Radio meters
Flux meter
