BalunTech BL762 Humidity Calibration Chamber (±0.2%RH (± 0.1℃); ±0.1%RH (± 0.02℃); 5~95%RH, -30 - 80℃)
Manufacturer: BalunTech Model: BL762 - Contact
Working principle: auto mixing of dry andwet air
Humidity range: 5…95%RH ( ≥ 20℃)
Temperature range: -5…65℃ (-30…+80℃ is option)
Humidity stability: ±0.1%RH
Temperature stability: ±0.02℃
Humidity uniformity: ±0.2%RH
Temperature uniformity: ±0.1℃
Humidity ramp/soak changes: <5 minutes for 20% RH
Temperature changes: 0.1℃/ minute
Humidity resolution: 0.1%RH
Temperature resolution: 0.01℃
Request water: distilled water
Desiccant type: Molecular Sieve
Chamber dimension: 500 x 500 x 600mm
Effective volume: 125L
Power supply: 220VAC 50Hz
Power consume: 10KW
Dimension (W*D*H): 1050 x 1500 x 1800mm
Weight: 350kg
Operation environment: 10°C to 35°C, <80%RH
SCOPE OF DELIVERY
BL765 Humidity generator
Air compressor
Heatless regeneration adsorption compressor
Overflow pipe
Funnel
Rubber stopper
Test frame
User manual
Warranty Certificate

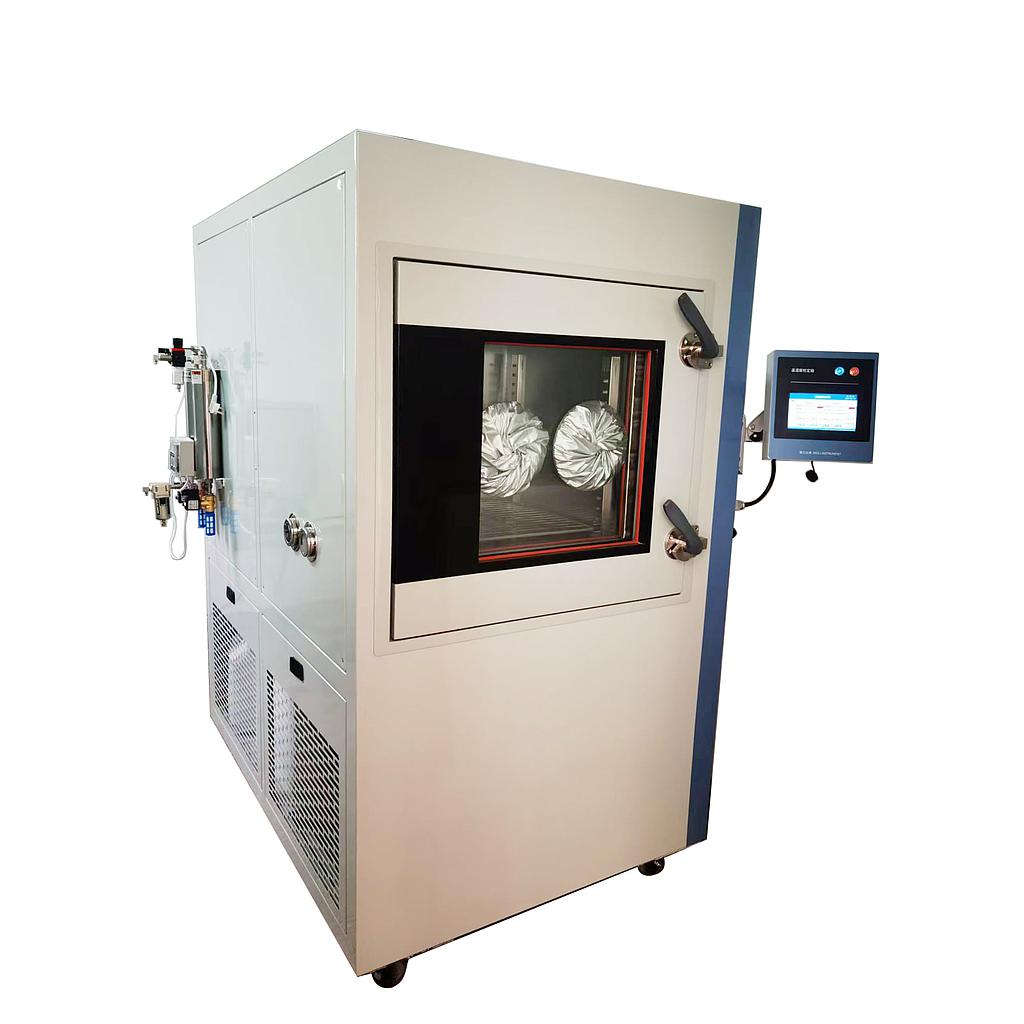

The BL762 humidity calibration chamber is a vertical temperature and humidity generator that supports large calibration equipment. This unit features a temperature-controlled door, which is designed to maintain internal temperature and remain unchanged due to outside ambient temperature changes. The chamber temperature is controlled by a Peltier heat pump arrangement for maximum stability and minimum temperature gradient. The saturator assembly can be filled easily and can be recycled by heating when required.
DATASHEET
FEATURES
5-95%RH humidity @ 20℃
Dew point is low to -60℃ DP.
Stability is ±0.1%RH and ± 0.02℃
Uniformity is ±0.2%RH and ± 0.1℃
Rapid humidity and temperaturestabilization time, much faster than traditional two-pressure generator.
125L effective work volume
Touch screen operation
APPLICATION
Humidity calibration laboratory
Humidity test workshops
