General
Input voltage: 90 – 264 V (50/60 Hz) or DC 12 V
Power consumption: Max. 70 VA
Rechargeable battery: Lead-acid battery, 2 x 6 V / 6.5 Ah
Battery life: Approx. 8 hours (self-sufficient operation)
Display: Colour LCD (approx. 3.5”), screen resolution 320 x 240 pixels
Data interface
▪ USB 2.0 (type B plug)
▪ BAUR Report Manager external, USB interface (type A plug)
Printer: Matrix printer, 24 characters, 57 mm plain paper
Ambient temperature (operational): -10°C to +55°C
Storage temperature: -20°C to +60°C
Humidity: Non-condensing
Dimensions (W x H x D): 476 x 372 x 340 mm (closed) 476 x 635 x 420 mm (open)
Weight: Approx. 29 kg
Degree of protection: IP32
Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental testing EN 60068-2-ff
Software available in: English, Chinese (CN), Chinese (TW), Czech, Dutch, French, German, Italian, Korean, Polish, Portuguese, Russian,
Spanish, Turkish
Insulating oil testing
Output voltage: 0 - 75 kVrms symmetrical
Voltage slew rate: 0.5 – 10 kV/s
Switch-off time: < 10 μs
Voltage slew monitoring: Real Breakdown Monitoring (RBM)
Accuracy: 0 – 75 kV ±1 kV
Resolution: 0.1 kV
Internal temperature recording of the oil sample: 0 – 99°C
Temperature resolution: 1°C
User-specific test sequences: 10
Standard delivery

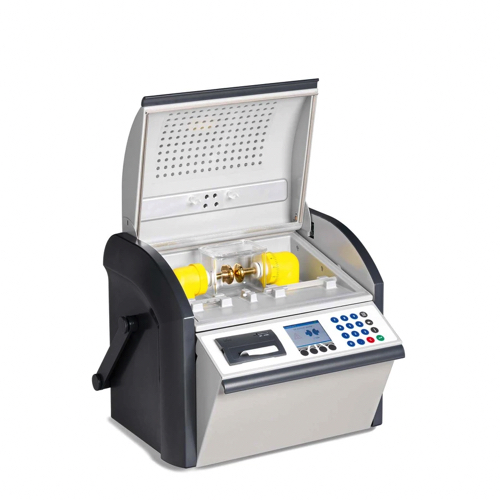

▪ DPA 75 C oil breakdown voltage tester
incl. integrated rechargeable battery and plain paper printer
▪ 1 x glass test vessel (test standard as selected)
▪ Magnetic stirrer
▪ Lifting stick for magnetic stirrer
▪ Setting gauge
▪ Carrying strap
▪ Mains supply cord
▪ User manual
