Surge voltage generator:
Surge voltage ranges: 0 – 8 kV, 0 – 16 kV, 0 – 32 kV
Options SZ 1000/SZ 1600: 0 – 4 kV
Option SZ 2500: 0 – 3 kV
Surge energy:
SSG 1100: 1,100 J
with option SZ 1000: 880 J
with option SZ 1600: 1,480 J
with option SZ 2500: 2,290 J
Option SSG 1500: 1,540 J
with option SZ 1000: 980 J
with option SZ 1600: 1,580 J
with option SZ 2500: 2,350 J
Option SSG 2100: 2,050 J
with option SZ 1000: 1,110 J
with option SZ 1600: 1,710 J
with option SZ 2500: 2,420 J
Surge sequence: 10 or 20 pulses/min, single surge
Option SSG 1500: 20 or 30 pulses/min, single surge
DC voltage: 0 – 32 kV
Max. output current (in DC mode):
560 mA (0 – 8 kV)
Option SSG 1500/SSG 2100: 850 mA (0 – 8 kV)
IRG 4000 time domain reflectometer:
The technical data of the time domain reflectometry and insulation resistance measurement are provided in the data sheet for the IRG 4000 time domain reflectometer and BAUR Software 4 for cable fault location.
System:
Power supply: 220 – 230 V, 50/60 Hz
Options:
110 – 120 V, 50/60 Hz (with external auto transformer)
240 V, 50/60 Hz (with conversion kit for mains supply)
Ambient temperature (operational): 0°C to +50°C
Extended temperature range: -20°C to +60°C Limitation of performance data possible
Storage temperature: -40 to +60°C
Dimensions (W x H x D): Approx. 935 x 1,145 mm x 775 mm (incl. KTG M3 cable drum rack)
Weight: From 195 kg (depending upon equipment)
Degree of protection: IP22
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery

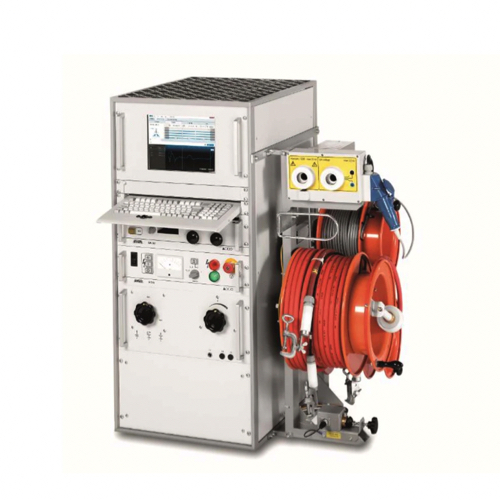

BAUR Syscompact 4000 cable fault location system:
▪ IRG 4000 time domain reflectometer incl. pre-installed BAUR Software 4
(cable fault location)
▪ Uninterruptible power supply (UPS)
▪ PC keyboard
▪ Measuring cable (3 m)
▪ SA 32 SIM/MIM coupling unit
▪ SSG 1100 surge voltage generator
▪ SK 1D inductive coupler for ICM
▪ 19” rack, height 27 RU (1,200.15 mm), depth 700 mm
▪ KTG M3 cable drum rack with HV connection cable, mains supply cord
and earth cable (incl. earth terminal), each 25 m
▪ Contact monitoring of the earth terminal
▪ Jumper plug for external emergency off unit
▪ CS 2 HV coaxial connection sockets, 40 kV
▪ GR 40 earth rod
▪ User manual
