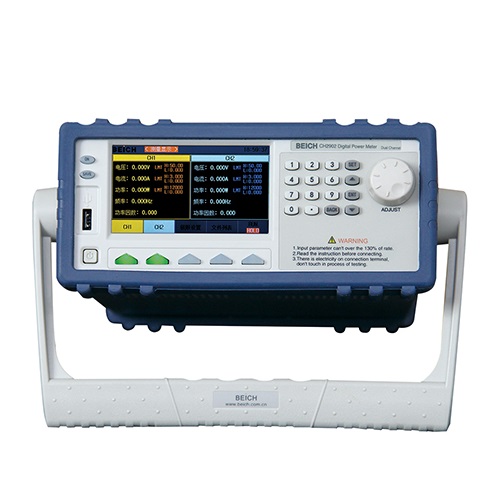

Beich CH2902A Multi-channel Digital Power Meter (Dual channel, 5-600V; 0.05mA-5A; 0.001W-3kW)

Wiring: Single phase

Input channel: Dual

Display: 4.3 inch TFT color screen

Test mode: Trms

Voltage range:

- 5-600V AC (range auto switch), peak voltage: 700V AC

- Min. test voltage: 5V AC; resolution 0.1V

Voltage input mode: AC

Current range:

- 0.05mA-20A AC(range auto switch), peak current: 6.5A

- Min. Test current 0.05mA AC

Current input mode: AC

Power range: 0.001W-3000W

Power factor range: 0.001-1.000; Formula: W÷[(V)× (A)]= (PF)

Frequency range: 45-65Hz

Test accuracy: ±0.4% reading+0.1 % range

Test speed: 5 times/s

Input impedance: ≥1MΩ (All voltage bins)

Interface: RS-232C,USB Device

Data save: USB HOST

Limit alarm: Yes

WIFI router: Optional

Input voltage range: 110V/220V AC, 50/60Hz
