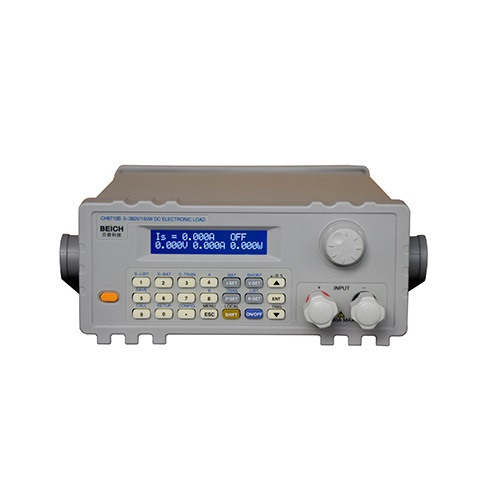

Beich CH8710B Economical Programmable DC Electronic Load (0~360V; 1mA~30A; 150W; LED backlight)

Rated value:

- Input voltage: 0~360V

- Input current: 1mA~30A

- Input power: 150W

Display mode: LED with backlight

Range/ Accuracy/ Resolving Power

Load accuracy: 0-36V/ ±(0.1%+0.03%FS)/ 1mV

                         0-360V/ ±(0.1%+0.03%FS)/ 10mV

                         0-3A/ ±(0.1%+0.1%FS)/ 1mA

                         0-30A/ ±(0.2%+0.3%FS)/ 10mA

Fixed voltage mode: 1.5V-36V/ ±(0.1%+0.03%FS)/ 1mV

                                 1.5V-360V/ ±(0.1%+0.03%FS)/ 10mV

Fixed current mode: 0-3A/ ±(0.1%+0.1%FS)/ 1mA

                                 0-30A/ ±(0.2%+0.3%FS)/ 10mA

Fixed resistance mode: 0.1Ω-10Ω/ ±(1%+0.3%FS)/ 0.001Ω

                                      10Ω-99Ω/ ±(1%+0.3%FS)/ 0.01Ω

                                      100Ω-999Ω/ ±(1%+0.3%FS)/ 0.1Ω

                                      1KΩ-4KΩ/ ±(1%+0.8%FS)/ 1Ω

Fixed power mode: 0-10W/ ±(1%+0.1%FS)/ 1mW

                               10-100W/ ±(1%+0.1%FS)/ 10mW

                               100-300W/ ±(1%+0.1%FS)/ 0.1W

Current measurements: 0-3A/ ±(0.1%+0.1%FS)/ 1mA

                                       0-15A/30A/ ±(0.2%+0.3%FS)/ 10mA

Voltage measurements: 1.5V-36V/ ±(0.1%+0.03%FS)/ 1mV

                                       1.5V-360V/ ±(0.1%+0.03%FS)/ 10mV

Battery test function

- Input voltage: 0.8-360V

- Maximum capacity: 999A/H

- Resolving power: 10mA

- Discharge time: 1~60000sec

Dynamic test mode:

- T1&T2(A or B Value Test Time): 1mS-999S

- Error<3% + 1mS

Protection scope: >Rated condition 5%

Input impedance: ≥200KΩ

Outline size: W*H*D 225mm*100mm*330mm

Weight: About 5.5Kg
