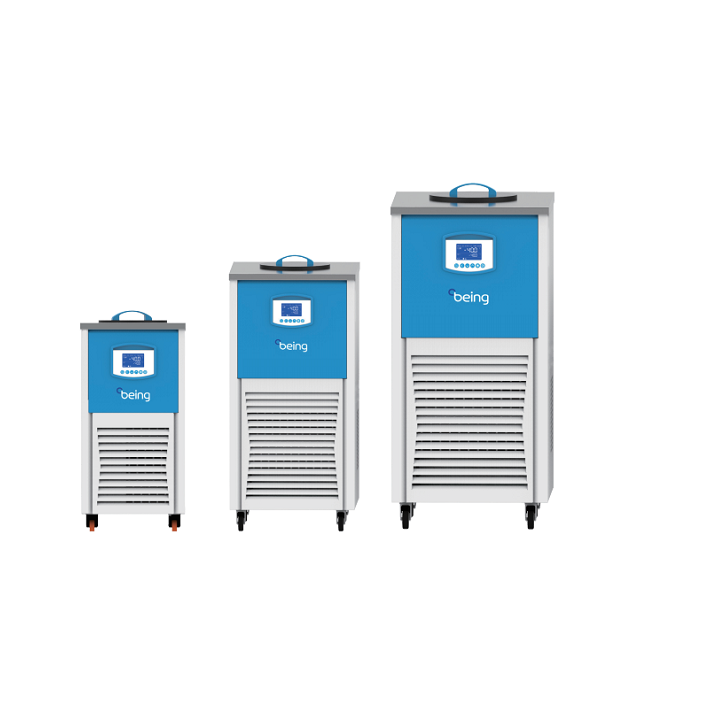

BEING BR-03A Cooling Recirculating Chiller (-20~20°C,3L)

Storage tank maximum capacity (L): 3

Temperature range: -20~20°C

Ambient temperature range: +5~30°C

Temperature accuracy: ±0.5°C

Cooling capacity at 20°C (kw): 1.5

Cooling capacity at 0°C (kw): 1.05

Cooling capacity at -20°C (kw): 0.45

Refrigerant: R404A

Security features: Delay, leakage, overcurrent, overvoltage

Total power (W): 1000

Power requirements: AC 220V±10%/50Hz

Pump flow max.(L/min): 8

Maximum head (m): 1.5

Inlet/Outlet pipe diameter (mm): Φ16

Noise level: ≤45

Liquid tank opening/depth (mm): Φ 180x120

Dimensions WxDxH(mm) (include caster): 250x480x585
