Dolly diameter: 7mm
Working range: 20-200MPa (2900-29000psi)
Range of pull off rate: 1.6-6MPa/s (232-870psi/s)
Dolly diameter: 10mm
Working range:10-100MPa (1450-14500psi)
Range of pull off rate: 0.8-3MPa/s (116-435psi/s)
Dolly diameter: 14mm
Working range: 5-50MPa (725-7250psi)
Range of pull off rate: 0.4-1.5MPa/s (58-217psi/s)
Dolly diameter: 20mm
Working range: 2.5-25MPa (362-3625psi)
Range of pull off rate 0.2-0.75MPa/s (29-108psi/s)
Dolly diameter: 50mm
Working range: 0.4-4MPa (58-380psi)
Range of pull off rate: 0.03-0.12MPa/s (4-17 psi/s)
Accuracy of put off rate: 2.5%+0.3s
Pressure accuracy: 1% full range
Pressure resolution: 0.01Mpa
Units: MPa, psi
Display Screen: Touch screen
Power specification:
Build in rechargeable battery, 12.6V2A, 20000mA/H
Packing list:
Standard: 10×10mm dolly, 10×14mm dolly, 10×20mm dolly, 1×Glue set, 5×swab, 5×spile, 1×sandpaper, 1×20mm cutter, 1× Temp. & Humidity sensor
Introduction:
At present, cross cut method is used for qualitative evaluation of coating adhesion, but not quantitative testing. With quality control to improve and the development of new material, more and more users want to have the quantification on the adhesion and cohesion between coating and substrate, meanwhile, also need to monitor the influence change of adhesion of anti-corrosion coating on some outdoor concrete based coating, marine coating and bridge coating by the environmental temperature and humidity.

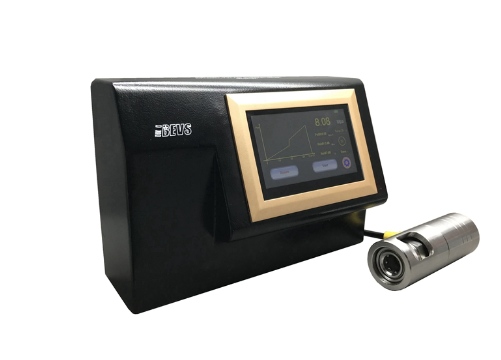

BEVS 2201 Automatic Pull Off Adhesion Tester adopts the full touch screen technology, It enables to test the adhesion of metal and other substrate and temperature and humility on the surface to further evaluate the coating quality and lifetime.
BEVS 2201ATV Adhesion Tester Verifier is used to verify the accuracy of the pull-off tester. It is of exquisite design and digitally displays force value.
Features:
Wide range of applications: Metals, wood, concrete and other substrates
Real time measure the temperature and humility of product surface
Loading up to 100Mpa
Data reproducible measurement
Enable to set the max. pull off force
Enable to set the holding time of tension
Data storage and quick view result
Real time display the diagram of drawing rate
USB data transmission
Multiple dollies are available
Big capacitive touch screen
Set up time and date
Build in rechargeable battery
Onsite calibration available
Bluetooth function
Main Interface: Real time display curve and parameter.
Setting interface: Set the related parameter and view the data.
Order Information:
BEVS 2201 Automatic Pull Off Adhesion Tester(Standard model, other dollies are available)
BEVS 2201 ATV Adhesion Tester Verifier
BEVS 2201/P/010 10mm dolly
BEVS 2201/P/014 14mm dolly
BEVS 2201/P/020 20mm dolly
BEVS 2201/P/050 50mm dolly
BEVS 2201/P/110 10mm cutter
BEVS 2201/P/120 20mm cutter
BEVS 2201/P/150 50mm cutter
Datasheet
