Single measurement time: 0.2s
Min measurement interval: 0.2s
Min measurement area: 0.75 x 1mm
Max sample size: 180 x 180mm
X axis speed: 10-500mm/s
Y axis speed: 10-500mm/s
Z axis speed: 10-100mm/s
Accuracy of color meter: △E*ab<0.2
Repeated positioning accuracy of XY axis: 0.1mm
The distance between sample surface and measurement port of color meter: 1±0.2mm
Gross weight: 180 KG
Input electricity: Voltage: 220V/50Hz
Power: 450W
Working temperature: 15-30℃
Humidity: 20-80% RH (No condensation)
Dimension: LxWxH (980x730x1550mm)
Introduction

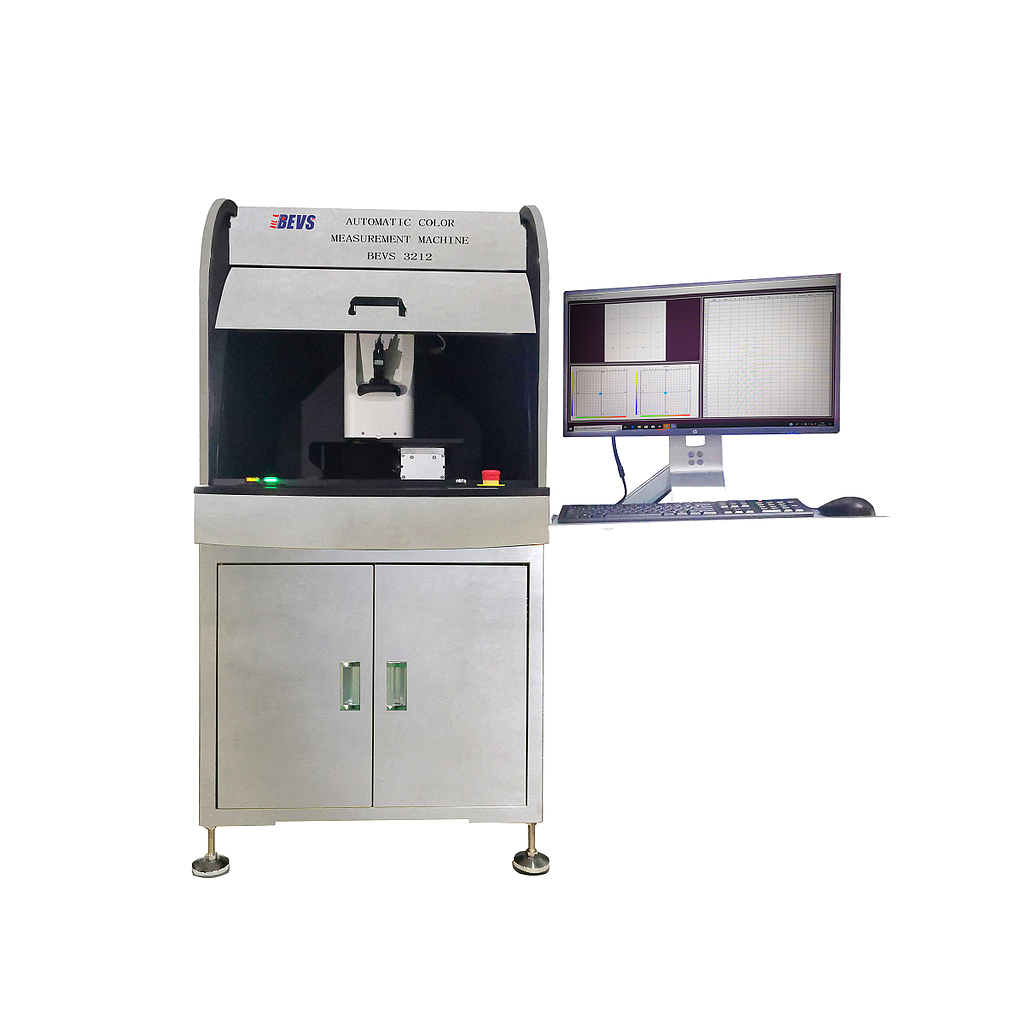

BEVS Non Contact Automatic Color Measurement Machine (NCACM) is an intelligent and automatic non-contact color measurement system based on BEVS intelligent control system and spectrophotometer. It has high integration and scalability. BEVS NCACM is able to realize continuous and fast non-contact measurement and the efficiency increased by more than 60%. It can also reduce the damage and scratch when contacting the sample during measuring. BEVS NCACM has a more prominent advantage in measuring small sample,it can measure many samples at a time with fixture.
Construction

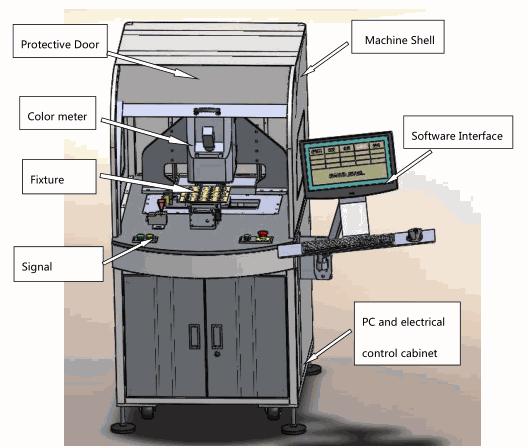

BEVS 3212 NCACM machine is mainly composed of color measurement module, XY axis module, sample fixture, software interface display, PC case and electrical control cabinet. The color measurement module is composed of a spectrophotometer and a Z-axis motion module. The spectrophotometer is installed in the Z-axis module. The control system can control the upper and lower motion. The sample fixture is fixed on the XY-axis module. The control system can control the movement of the sample fixture at any point on the XY-axis plane.
Software System
Operator can control the spectrophotometer, BEVS automatic measurement control system and USB Camera by PC.
The functions of the software:
1) Calibration of Spectrophotometer, real-time control of color measurement and data.
2) Programming control of BEVS automatic measurement and control system XY axis module positioning to coordinate (X, Y) points.
3) Connecting USB Camera to assist verification and positioning.
4) Programming measurement program
5) Real-time display of measurement results and save

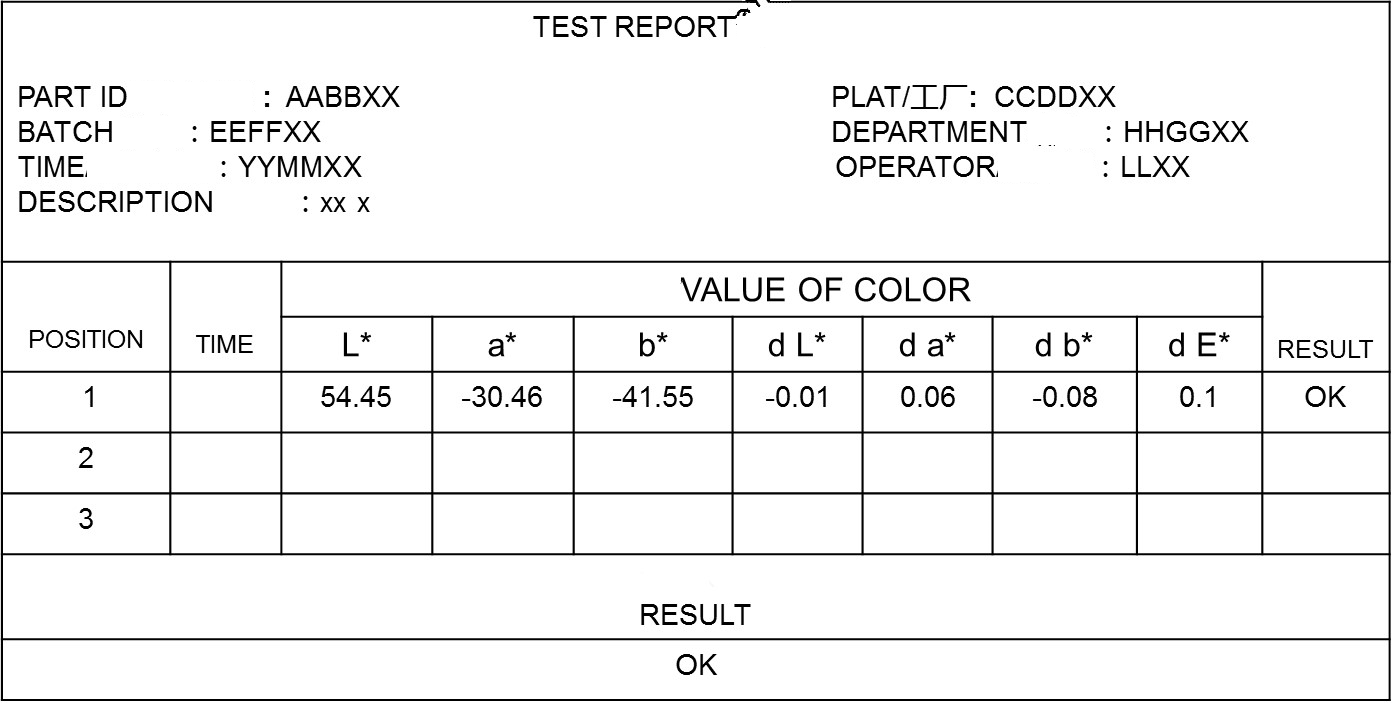

6) Output testing report
Order Information
BEVS 3212 Non Contact Automatic Color Measurement Machine
(Enable to customize upon requirements)
