Speed:
X: 10~600 mm/s
Y: 10~100 mm/s
Gun distance: 150~250 mm
Spray pressure: 0.1~0.5 Mpa
Spray dimension: MAX 200 mm x 500 mm or 6 pcs (150 mm x 100 mm panel)
System pressure: 0.6 Mpa
Exhaust volume: 2600 m³/h
Power: 1KW (Without negative pressure fan)
Size: 1500 mm x 1300 mm x 2320 mm
Weight: 500 KG
Product Briefing

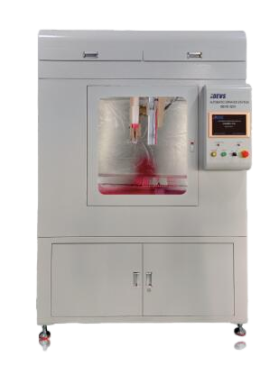

The BEVS 3231 automatic panel spray station utilizes a portable paint syringe that allows for small dosages of paint, quick sample changes, and no cleaning. The sealed, controlled "booth" design allows the station to be used in a wide range of applications in production plants, laboratories and other locations.
The station is operated by man-machine interaction. The operator puts the substrate board on the X-axis rotating platform, puts the syringe containing the coating material to the specified position on the Z-axis, closes the operating door, and then activates the equipment to complete the spraying according to the preset program automatically.
Product Features
Nozzle no-cleaning
10-inch high-definition touch screen design
Intelligent programming of the spraying process
Fully automatic spraying with two axes
Simultaneous spraying in both directions
Adjustable height of the spray head from the substrate plate
Adjustable spraying width and atomization parameters according to needs
The equipment can be disassembled into two tiers for easy transportation and access to height-restricted spaces such as laboratories.
Product Functions
(1) Two axes (X, Y) automatic control, Z-axis spraying distance can be adjusted, X, Y-axis according to the established program automatic control operation, Z-axis according to the actual need to manually adjust the gun distance.
(2) Customized programming can be carried out according to the specific situation, inputting parameters such as spraying movement speed, spraying atomization pressure, number of times of spraying, start spraying position and end position, etc., to achieve precise coating effect.
(3) Hundreds of spraying programs can be preset and stored, one-key call, convenient and quick.
(4) The interface real-time display of experimental parameters, including the current number of times sprayed, the remaining number of times sprayed.
Order Info.
BEVS 3231 Automatic Panel Spray Station
