Sensor Probe: NF
Working principle: Eddy current principle
Measuring range: 0~1250um
Guaranteed tolerance （of reading）: (±3%+1.5)um
Low range Precision: 0.1um
Minimum curvature radius: 3mm
Diameter of Minimum area: 5mm
Basic critical thickness: 0.3mm
Size（HxWxD）: 113.5mm x 54mm x 27mm
Weight: 110g

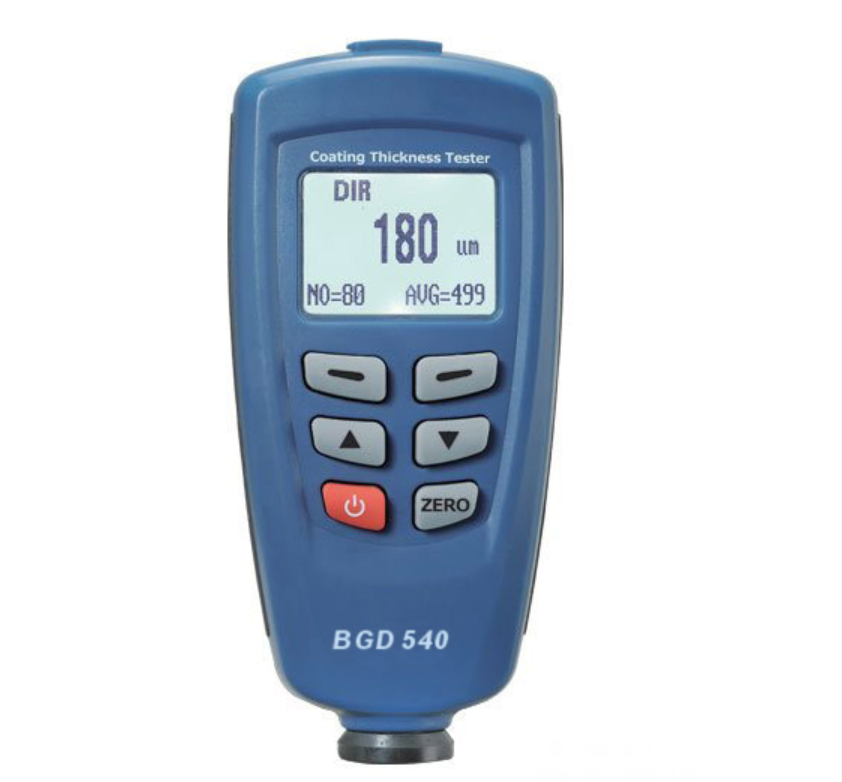

This is a ecomomic dry film thickness gauge which can measure both non-magnetic coatings on steel and insulating coatings on non-ferrous metals.
Features:
◆ Menu operation system
◆ Two measuring mode：CONTINUE and SINGLE mode
◆ Two working Mode：DIRECT and GROUP mode
◆ Statistic Display：AVG, MAX, MIN, NO., S.DEV
◆ One point calibrating, two points calibrating and basic calibratingeasily
◆ Memory for 400 readings（80 DIRECT and 320 GROUP readings）
◆ Delete single readings and all group readings easily
◆ High alarm and Low alarm for all working mode
◆ Low battery, error indication
◆ USB interface for PC software (windows 98/2000/xp/vista)
◆ Accessories: Two “AAA”batteries, USB cable, CD, Calibration Iron, Calibration Aluminum, PrecisionStandard, Gift box with carrying case.
