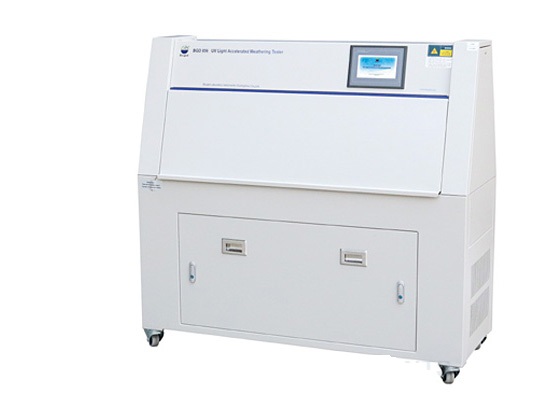

Biuged BGD 856 UV Light Accelerated Aging Test Chamber (0.3 W/m2~ 1.55 W/m2)

■ Ultraviolet Light Accelerated Weathering Cabinet

■ Light Source: UV-A (wave length 340 nm) or UV-B (wave length 313 nm) ; 40W×8 pcs (The normal use-life is 6.000 hours)

■ The range of Irradiance: 0.3 W/m2~ 1.55 W/m2

■ Temperature Range：Black Panel temperature（BPT）：RT+10℃~80℃

■ Interior of cabinet：Stainless steel -SUS 304 material

■ Exterior of cabinet：Powder coating on SUS 304

■ Insolating Area：5.175cm2/828in2

■ Sample Capacity：48 pieces of standard specimen（75mm×150mm standard samples）or 15 pieces of 100mm×300mm

■ Adjustable range for water supply: 0-4LPM

■ Water Consumption：7L/day（for condensation）.3L/minute（for spray）

■ Overall Size：1.360mm×560mm×1.290mm（L×W×H）

■ Net Weight：161KG

■ Total Max. Power：2kW

■ Power：220VAC±10%/50HZ（60 HZ is custom）;10A ( Max Electric Current )
