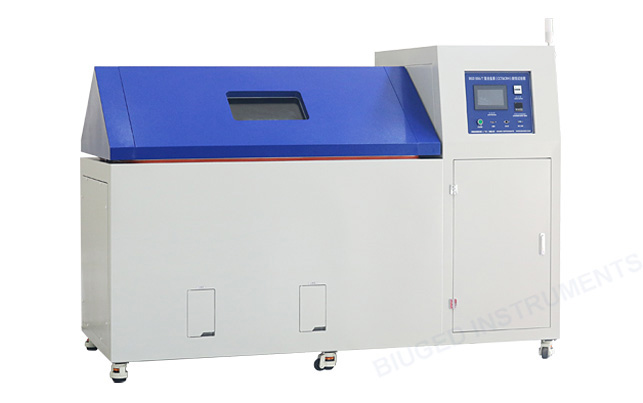

Biuged BGD 888/T Cyclic Corrosion Test（CCT&CRH）Cabinets (1920 L)

Working room size（W×H×D）（mm）: 2000×800×1200

Working Room Capacity （no including V shape cover）: 1920 L

Overall Size（W×H×D）（mm）: 3300×1720×1420

Power/Max. Current: 32.8KW/40A

Power Supply: AC 380V 3 phase 40A

Temperature Range: 20℃～70℃（Continuously adjustable）

Temperature Uniformity: ≤ 2℃（When RH ≥ 75%）; ≤ 3℃（When RH＜75%）

Temperature Stability: ± 0.5℃

Temperature Rise and Fall Rate: ≧1℃/min (whole process average)

Humidity Range: 20%～98% (Adjustable in P150 range)

Humidity Uniformity: ≤ 2%RH～3%RH（When RH ≥ 75%）; ± 5% RH（When RH＜75%）

Humidity Stability: ± 2% RH

Salt Fog Precipitation: 1ml～2ml/ 80cm2.h（Adjustable）

Spray Method: Continuous or Cyclical

Required Work Environment: Tem: 5～30℃; RH: 45%～85%RH; Barometric Pressure: 86kPa～106kPa

Required Air Supply: Air consumption: 4m3/h, Pressured air without water and oil which has been dried and filtered, pressure is （0.4～0.8）Mpa.

Required Water Supply: It meets the secondary water standard specified in ISO 3696 water specification and test method standard for analytical laboratory. The water supply pressure is within the range of 0.1MPa ~ 0.4MPa. The instrument reserves 1/4 "internal teeth for water supply interface.

*Note：Distilled water or deionized water is required for preparing spray solution,

 water consumption is near 60L/24hour under continuous spraying

Exhaust and drainage: The exhaust pipe of the instrument shall be extended to the outdoor designated position, and shall be led out of the room through opening in the wall near the instrument installation. The exhaust pipe shall not be kept unblocked without water. The exhaust pipe diameter shall be Ф 50mm; The instrument drainage pipeline shall be extended to the outside, and the drainage pipeline shall be unblocked. The drainage outlet shall be lower than the instrument drainage outlet, and the drainage pipe diameter shall be Ф 1/2".
