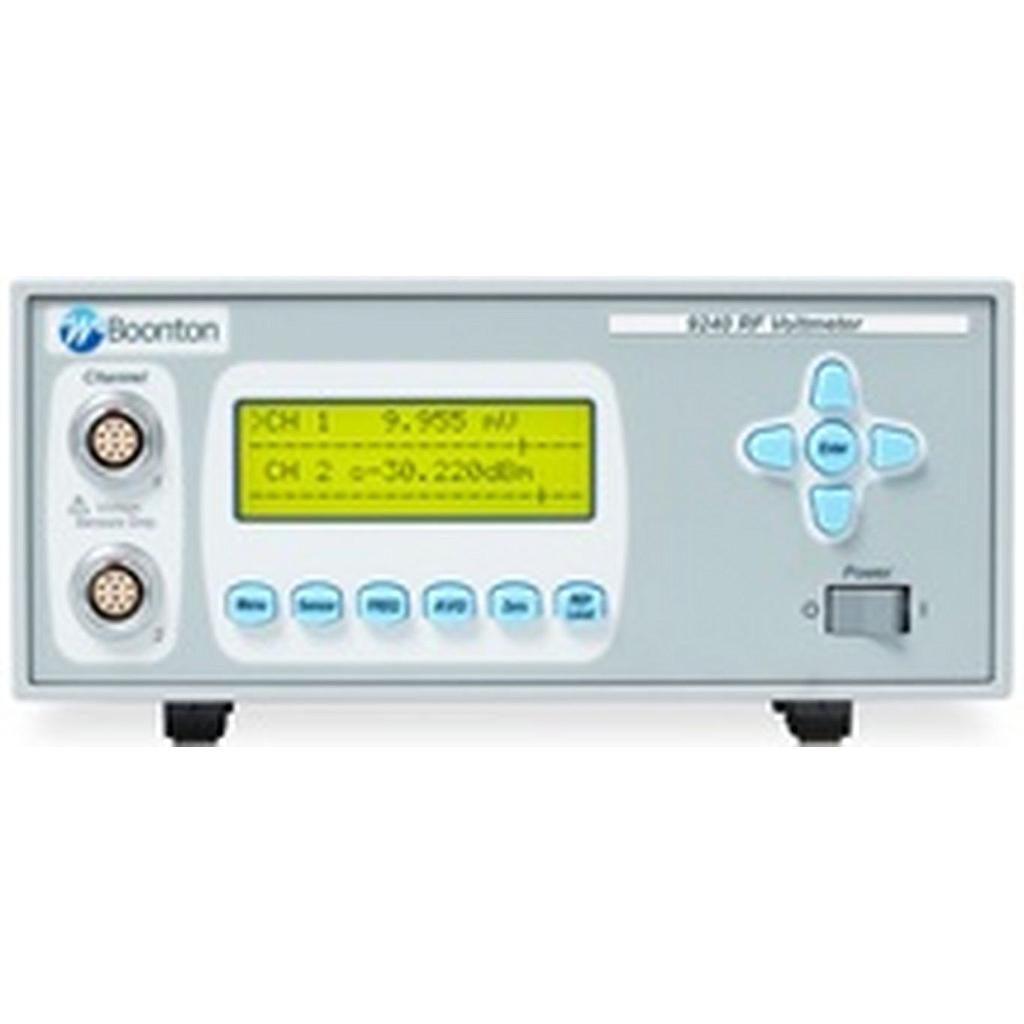

2 Chanel
1% accuracy at full scale
Voltage Range : 200 μV to 10 V in eight ranges, (300 V to 700 MHz with a 100:1 divider), Indications to 50 μV
Voltage Display: 1 mV to 300 V fs
Waveform Response: RMS to 30 mV calibrated in the RMS of a sine wave above 30 mV (RMS to 3V and 700 MHz with 100:1 divider)
Input Capacitance: Less than 1.5 pF
Recorder Output: 10 V fs proportional to indicated voltage in mV mode over a range 7V = 0dBm regardless of Z. in dB mode,
sensitivity of 1V per 10dB change over entire range
Power Consumption: 85-260 VAC, 47 to 63 Hz
Weight: 5 lbs (2.3 kg)
Interface : IEEE-488 (GPIB), RS-232
Include:
Options
- 95206302A
Standard RF Probe Kit 10 kHz – 1.2 GHz (952001)
Includes: 952002 50 Ohm BNC, 952004 Probe Tip 952005 100:1 Voltage Divider,
95109101A Sensor Data Adapter w/ 5ft / 1.5m cable.
- 95206402A
Low Frequency Probe Kit 10 Hz – 100 MHz (952016)
Includes: 952002 50 Ohm BNC, 952004 Probe Tip, 952058 LF 100:1 Voltage Divider,
95109101A Sensor Data Adapter w/ 5ft / 1.5m cable.
- Prepaid calibration
