Specification:
- Flow Range: 3-12 LPM (3000-12000 cc/min), 50-800 cc/min With Universal Low Flow Holder P.N. APB-109030
- Compensation Range:
5000 cc/min up to 15”water back pressure
4000 cc/min up to 30”water back pressure
3000 cc/min up to 40”water back pressure
2000 cc/min up to 60”water back pressure
1000 cc/min up to 30”water back pressure
800 cc/min up to 15”water back pressure
- Accuracy: ± 5% of Compensation Range
- Run Time (hrs) at different backpressure and flow rate
(cc/min) Backpressure (inches of water)
Flow Rate 5” 10” 15” 20” 30” 40” 50” 60”
1000 27hr 21hr 17hr 14hr 10hr
2000 19hr 17hr 15hr 13hr 9hr 7hr 5hr 3hr
3000 17hr 14hr 11hr 9hr 7hr 5hr
4000 15hr 11hr 9hr 8hr 5hr
5000 11hr 8hr 6hr
- Low Flow using Universal Low Flow Holder 5 to 799cc/min 8 hours
- Data Storage: Flow rate, elapsed clock time, accumulated volume, temperature, DP and any Flow Faults are logged in the memory for download to PC
- Display: Backlit LCD with 2 lines of 16 Characters
- Normal Operation: Battery Level, Flow Rate, Elapsed Time, Volume Collected, Timer, DP & Temp.
- Flow Fault Displays: Flow Fault, or Filter Off
- Power Supply: Single Pack, NiMH Batteries: 4.8V, 2.15 Ah
- Recharge Time:Standard 16 Hrs (Optional QuickOne™ 2 Hrs)
- Standard-Chargers: Input Voltage 230 VAC
- Approvals: CE EMC Directive (EMCD) 89/336/EEC UL and cUL (pending), ATEX (pending)
- Temperature
Operating 32°F to 113°F (0°C to 45°C)
Storage 32°F to 113°F (0°C to 45°C)
Charging 41°F to 104°F (5°C to 40°C)
- Case: Polycarbonate steel fiber filled, RFI/EMI-shielded
- Size: 11.4 cm H x 10.2 cm W x 5 cm D
- Weight: 539g
Pump kit includes

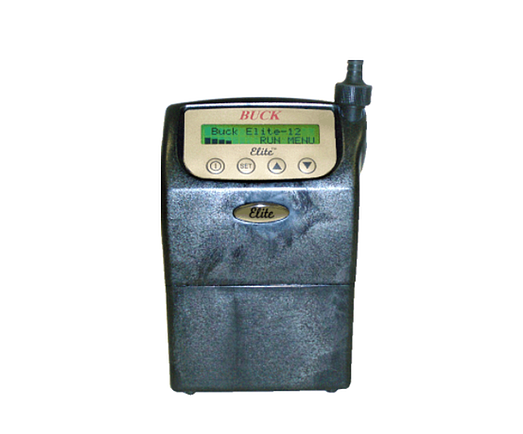

- pump
- Single pack NiMH battery
- Standard 230VAC battery charger
- Luer hose adapter
- Shirt/hose clip
- 3 feet of vinyl hose
- Operating manual
- Adjustable Universal low flow holder for sorbent tube sampling
