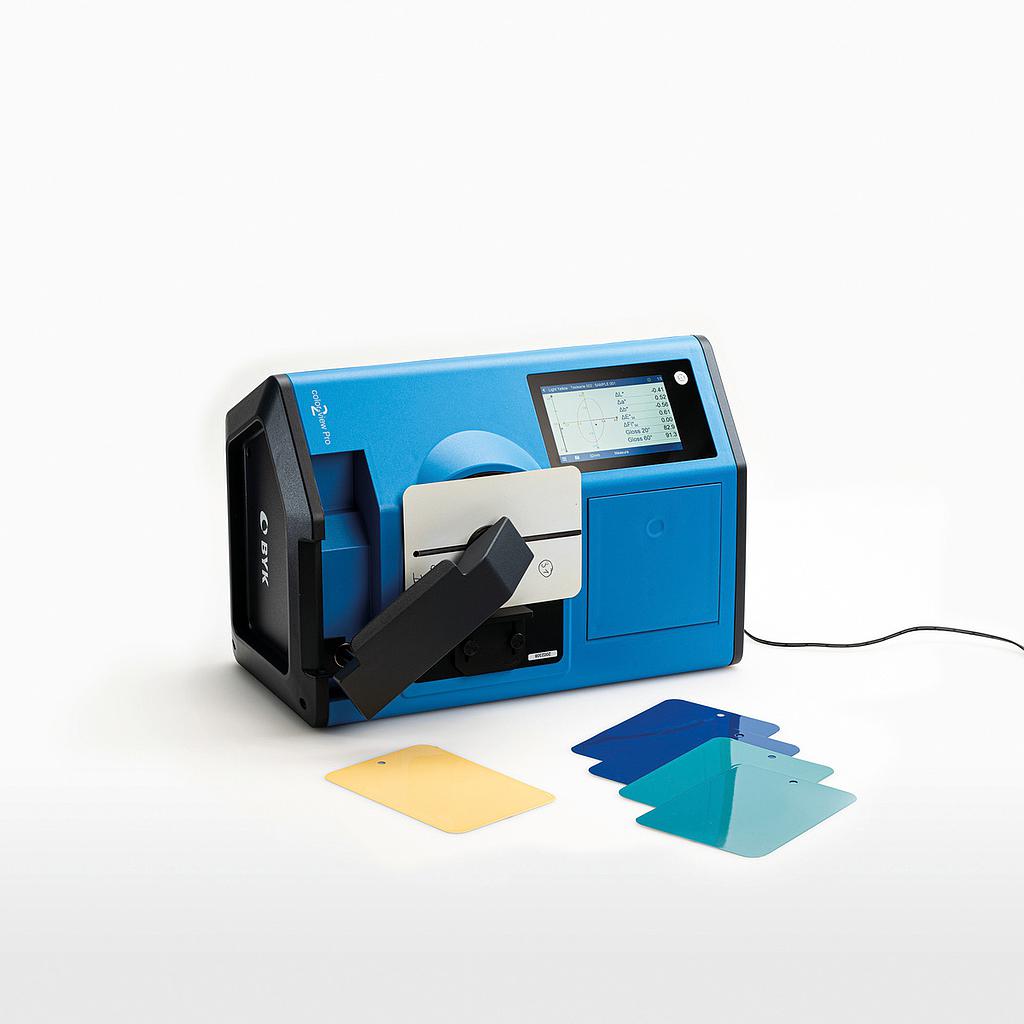

BYK color2view Pro X Color & Jetness measurement: Fixed or variable aperture

Technical Properties:

Measuring Capability: Color, Gloss, Fluorescence, Jetness

- Color Measurement:

Color Geometry: 45°c:0°

Sample Port: 32 mm, 12 mm, 04 mm

Measuring Area: 22 mm, 08 mm, 04 mm

Spectral Range Colorimetric: 400 - 700 nm, 10 nm resolution

Spectral Range Fluorescence: 300 - 760 nm, 10 nm resolution

Measurement Range: 0 - 170% remission

Repeatability Color: 0.01 ΔE94 (10 readings on white)

Reproducibility Color: 0.1 ΔE94 (average of 12 BCRA II tiles)

Color Systems: CIELab/Ch, Lab (h), XYZ, Yxy

Color Indices: YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, Metamerism, Grayscale

Illuminants: A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30, CIE 015:2018 LED Normlicht

Observer: 2°, 10°

Jetness Indices: MY, Mc, dM, GY, Gc, dG

Repeatability Jetness: Y ≤ ± 0.0005

Reproducibility Jetness: Y ≤ ± 0.003 (Y<0.5)

- Gloss Measurement:

+) Gloss Measurement: 20°

Measurement Range: 0 - 100 GU

Aperture Size: 9 x 10 mm

Repeatability: 0 - 100 GU: ± 0.2 GU

Reproducibility: 0 - 100 GU: ± 1.0 GU

Available for Aperture: 32 mm, 12 mm

+)Gloss Measurement: 60°

Measurement Range: 0 - 100 GU

Aperture Size: 9 x 16 mm

Repeatability:

0 - 20 GU: ± 0.1 GU

20 - 100 GU: ± 0.2 GU

Reproducibility:

0 - 20 GU: ± 0.5 GU

20 - 100 GU: ± 1.0 GU

Available for Aperture: 32 mm

- General:

Memory: 4,000 standards and 10,000 samples

Interface: USB-cable, LAN

Display: 5" Capacitive Color Touchscreen

Languages: Chinese, English, French, German, Italian, Japanese, Russian, Spanish

Power supply: 12 V DC; max. 3 A

Weight: 7 kg

Weight: 15.5 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: Up to 85% at 35 °C (95 °F), non-condensing

Dimensions: L x W x H: 39 x 26 x 19 cm

Dimensions: L x W x H: 15.35 x 10.2 x 7.5 in
