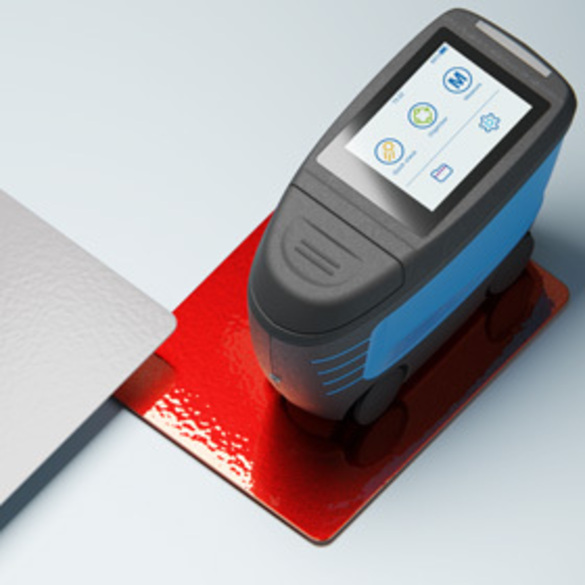

BYK wave-scan 3 dual Orange peel meter (High to semi gloss, du < 65)

Technical Specifications

Application: High to semi gloss, du < 65, linear range

Structure Spectrum

du: < 0.1 mm

Wa: 0.1 to 0.3 mm

Wb: 0.3 to 1 mm

Wc: 1 to 3 mm

Wd: 3 to 10 mm

We: 10 to 30 mm

Repeatability (Std. Dev.): du < 40: 4% or > 0.4 du > 40: 6% or > 0.6

Reproducibility (Std.Dev.):du < 40: 6% or > 0.6 du > 40: 8% or > 0.8

Object Curvature: radius > 50 cm

Scan Length: 5 / 10 / 20 cm

Resolution: 375 Points/cm

Min. Sample Size: 35 mm x 150 mm

Light Source: Laser diode, LED and IR-SLED

Laser Energy: < 390 µW (Laser class 1)

General

Memory: 10.000 readings in 1000 test series

Interface: USB port, WiFi optionally

Display: 2.8 in capacitive color touch display

Languages: English French German Spanish Italian Chinese Japanese Russian

Power supply: rechargeable Li-Ion battery pack, up to 1000 readings depending on usage

Weight: 0.7 kg

Weight: 1.55 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: up to 85 % at 35 °C (95 °F) non-condensing

Dimensions: L x W x H: 15 x 7 x 11 cm

Dimensions: L x W x H: 5.9 x 2.7 x 4.3 in

Delivery Content

Instrument

Checking tile (7404)

Docking station with USB cable (7401)

smart-process Software with 2 Licensees for download (4831)

2 rechargeable Li-Ion battery packs (7402)

Certificate

Manual

Carrying case

1-day training
