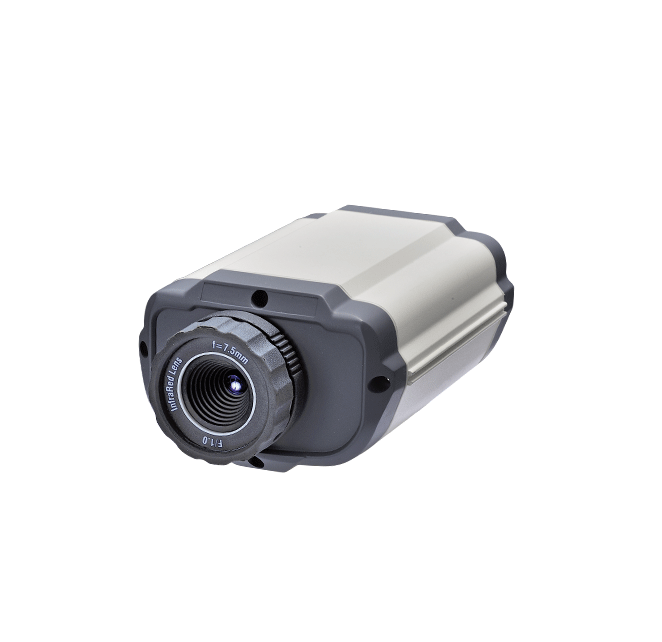

CEM CAM80 Thermal Imager (-20~350°C, 3.78mrad, 80x80px)

Imaging and optical data

Field of View (FOV)/Minimum focus distance: 17x17°/0.5m

Spatial resolution (IFOV): 3.78mrad

Thermal sensitivity/NETD: < 0.1°C /100mK

Image Frequency: 50HZ

Focus mode: Manual

Focal length: 9mm

Focal Plane Array (FPA) / Spectral range: Uncooled microbolometer / 8–14 µm

IR Resolution: 80x80

Image pressentation

Image modes: IR image only

Color palettes: IR image only

Measurement

Object temperature range: –20°C to +150°C (–4°F to +302°F)

                          0°C to +350°C (+32°F to +662°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Data communication interfaces

Interfaces: USB, composite video

USB: Remote contro

Video out: Composite(PAL and NTSC)

Ethemet type, connector type, video steaming:

Alarm output: 2 relay output

Power system

Input voltage: DC 9V to 12V

Options Lens

11mm: No

22mm: No

33mm: No

38mm: No
