Dimension(L*W*H): 500*725*1250mm
PCB size(L*W): 50*50-445*330mm
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Transport height: 900±20mm(or custimzie)
Cycle time: 10 Seconds or specity
Power supply: AC 220V±10V, 50/60HZ
Power: Max 150VA
Air prssure: 4-6bar
Air consumption: 1.1itr/min max
Screen size : 7 inch
PCB thickness: 0.4-3.5mm
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 120kg

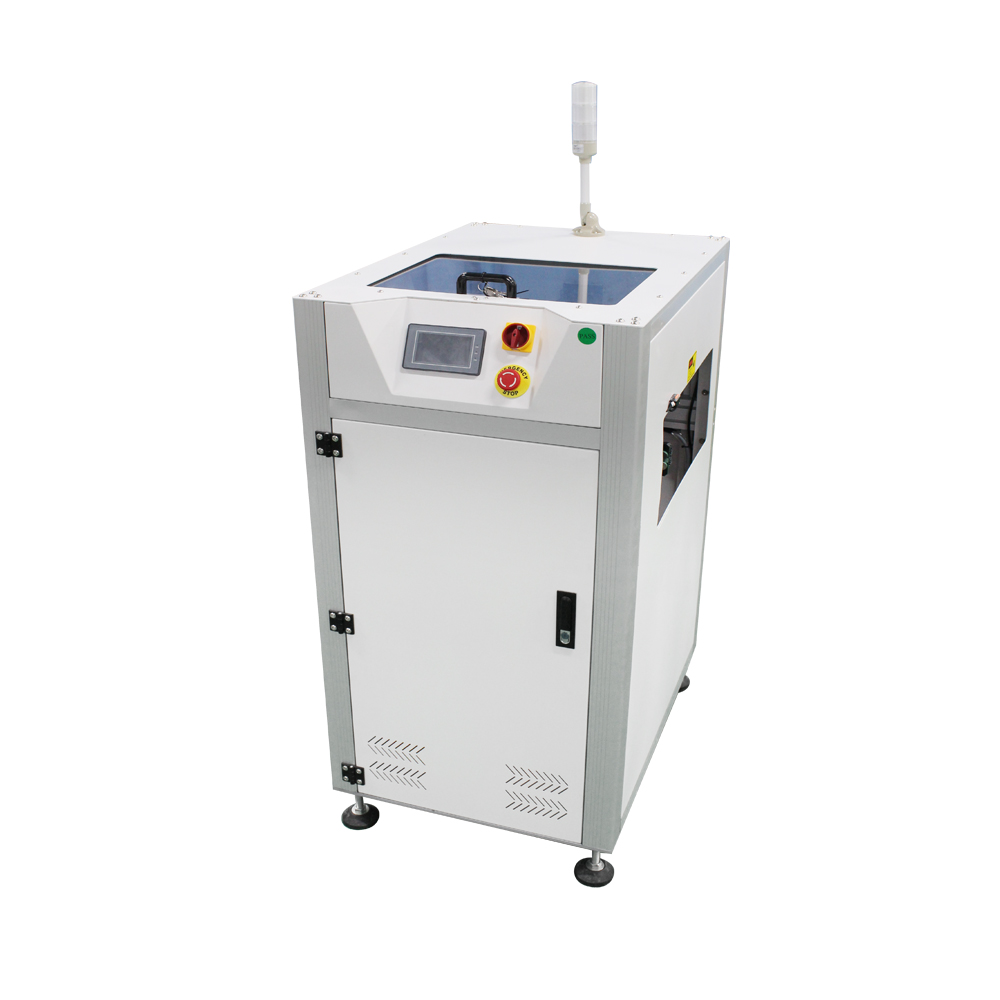

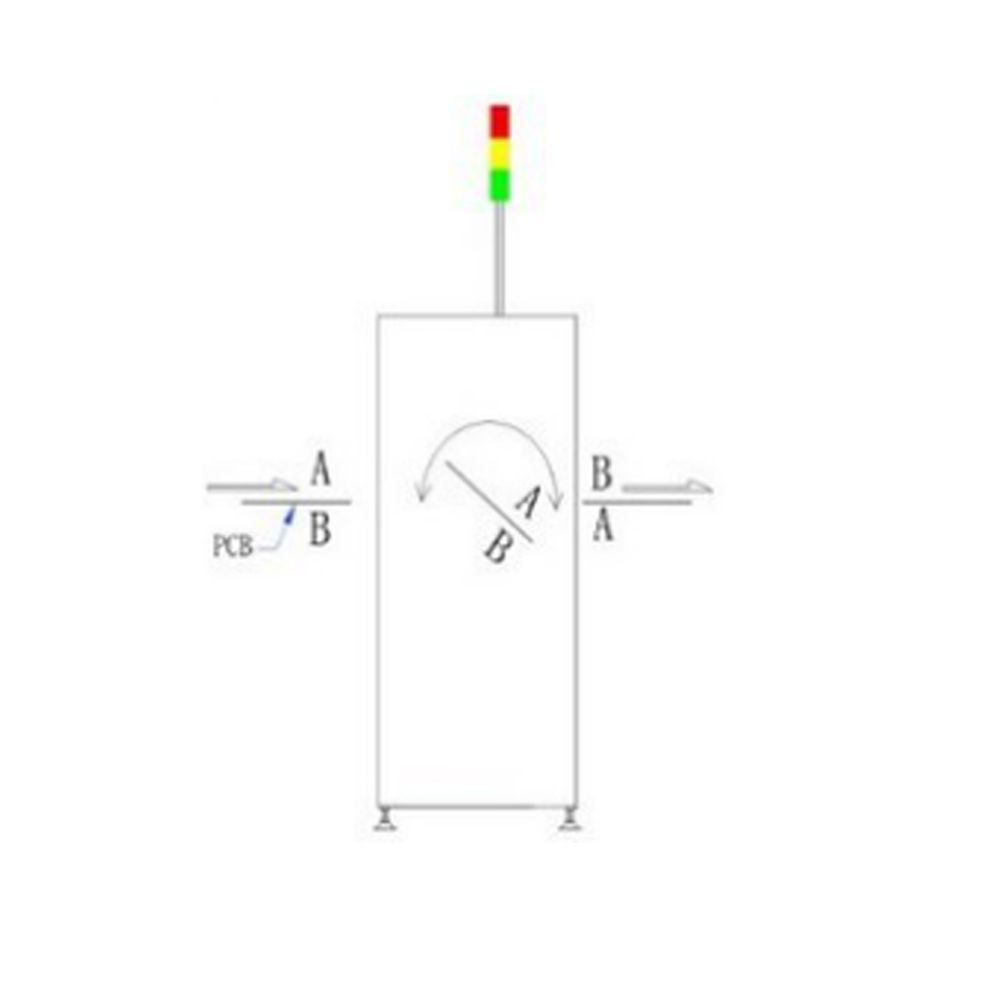

This unit is used to invert PCBs(180o) for "double-sided" process.
Features
1. Panasonic PLC+LED touch screen control,easy to operate.
2. Pass through mode provided.
3. Enclosed design with built in torque limiter ensure highest level of safety.
4.Top cover can be opened,esay to make the maintenance.
5. Small machine footprint.
6. Smooth and precise inverting motion.
7.Parallel and smooth width adjustment(leadscrew)
8. With SMEMA signal.
