Dimension(L*W*H): 750*800*1200mm
PCB size(L*W): 50*50-530*460mm
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Convey speed: 0.5-20m/min or specify
Transport height: 900±20mm(or custimzie)
Cycle time: 10 Seconds or specity
Power supply: AC 220V±10V, 50/60HZ
Power: Max 250VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Screen size: 7 inch
PCB thickness Minimum :0.4mm
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 220kg

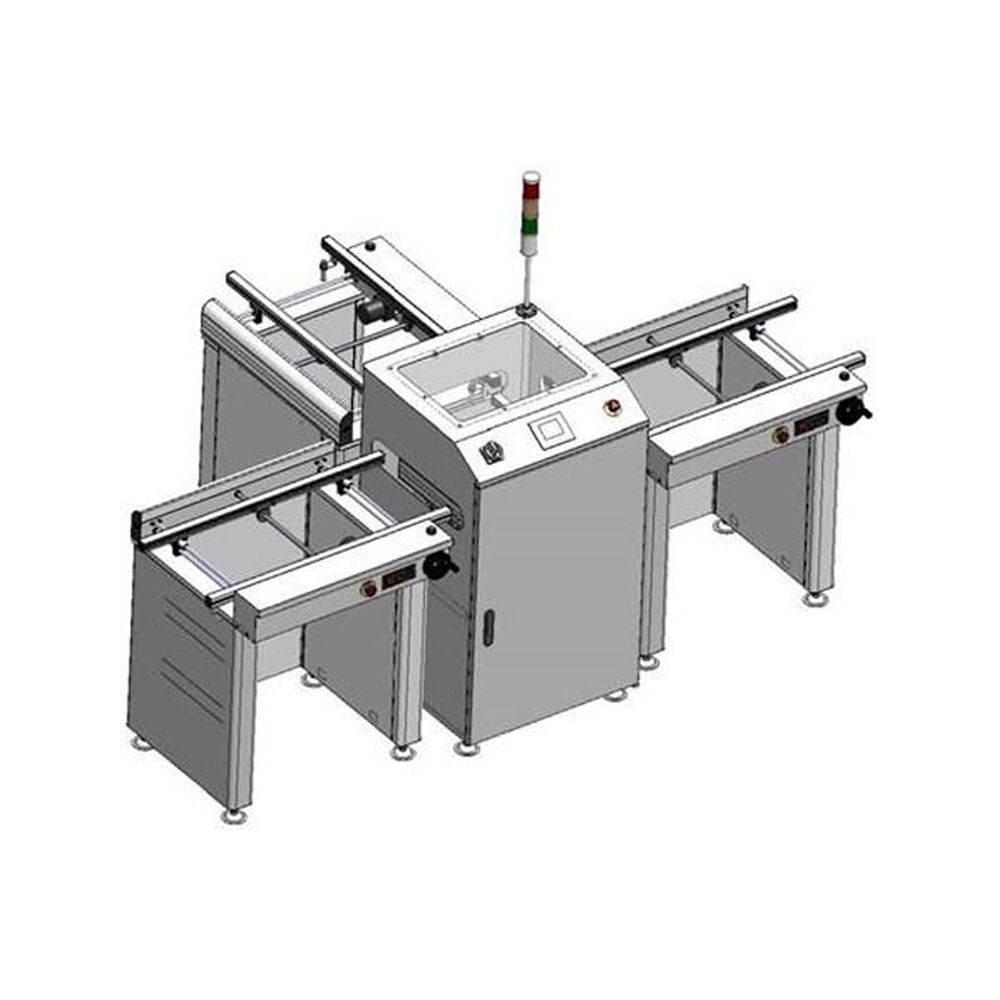

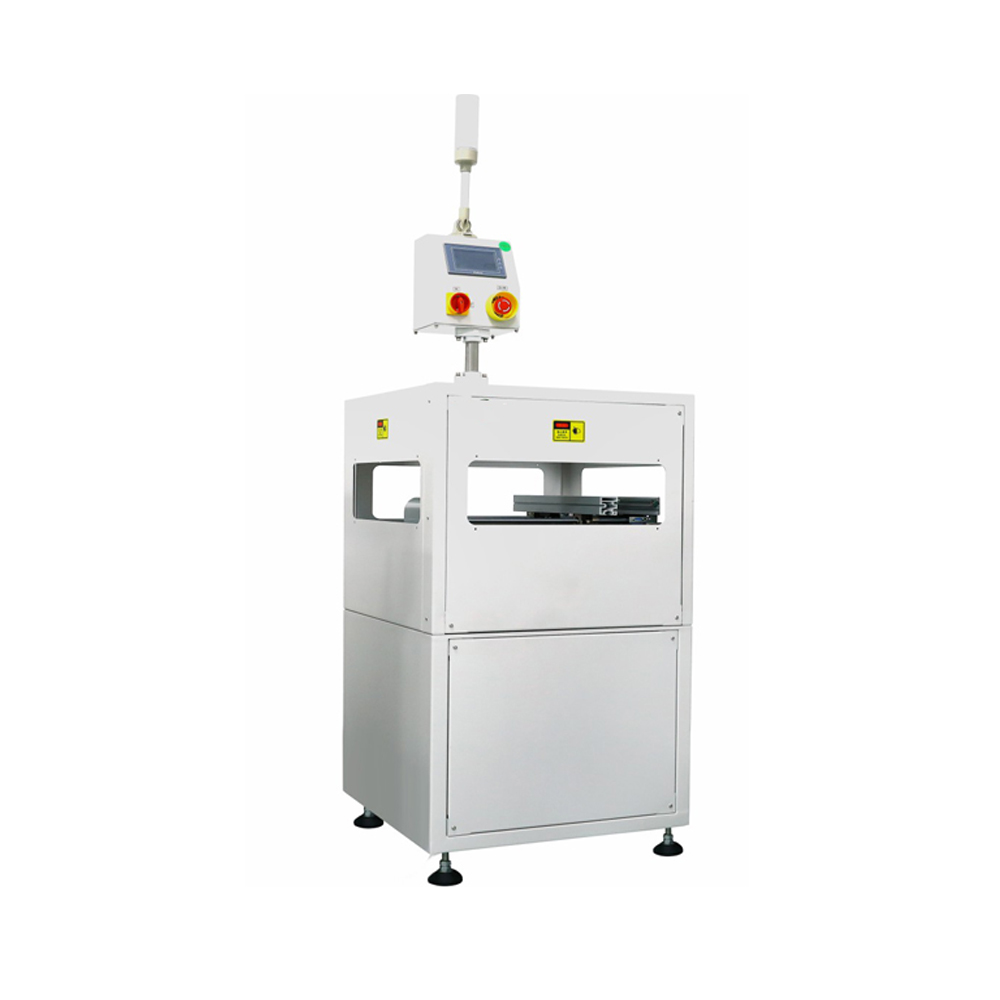

This unit is used to redirect PCBs flow into different channels in a production line (rotate 90 degrees, 180 degrees, 270 degrees).
Features
1.User friendly 'soft-touch' LED control membrance control panel
2.Enclosed design with built-in torque limiter ensures highest level of safety
3.Top cover can be opened for easy access to hardware during maintance
4.Parallei and smooth wdth adjustment(leadscrew)
5.Steady and precise move(Stepper motor)
6.Minimize transmission clearance clearance between conveyor
7.Diferent sizes available upon request
