Dimension(L*W*H): 2450*1250*1250mm
PCB size(L*W): 50*50-530*460mm
Magazine size(L*W): 535*530*563mm
Maximum PCBs capacity: 400pcs(0.6mm thick PCB)
Number of nozzals: 4pcs(stp)
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
No. of magazine: Loader: upper 1, lower 2
Conveyor belt of magazine: Plastic strips
Transport height: 900±20mm(or custimzie)
Cycle time: 12 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 300VA
Air prssure: 4-6bar
Air consumption: 30itr/min max
Screen size : 7 inch
PCB thickness: Minimum 0.6mm thickness
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 320kg

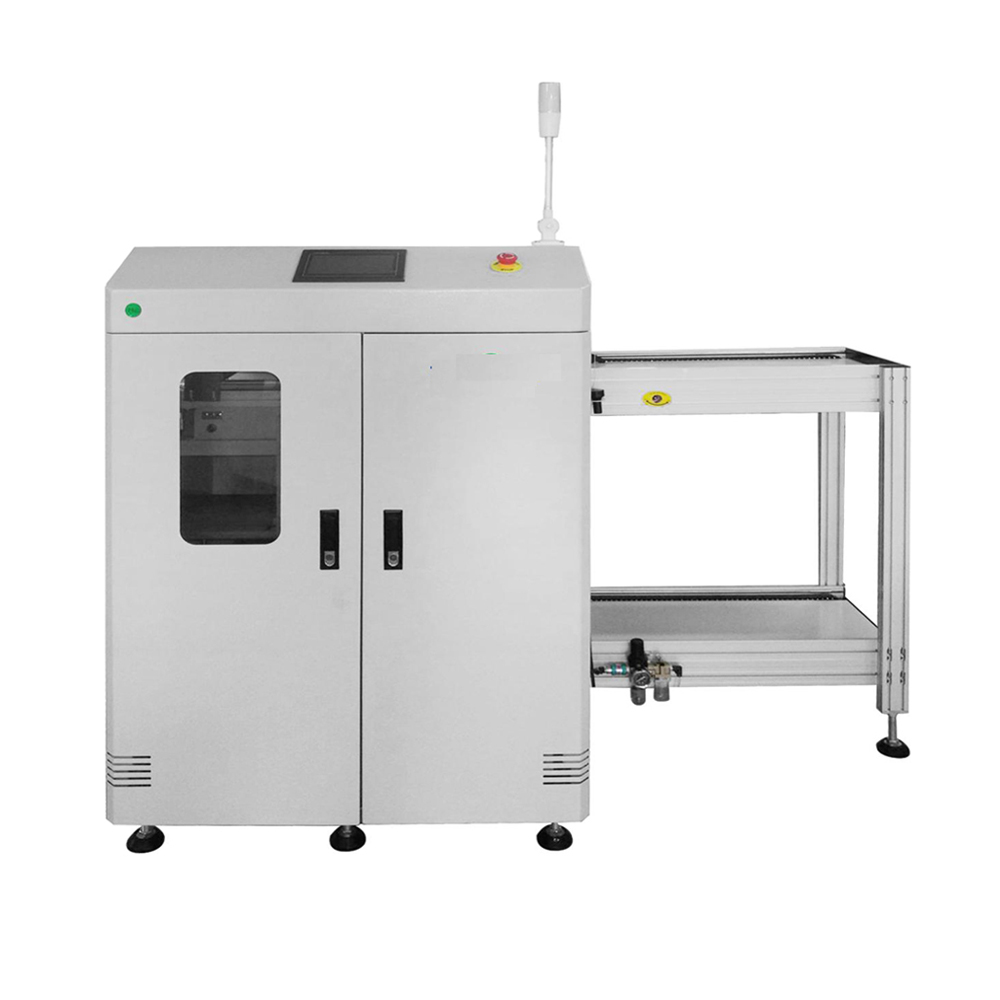

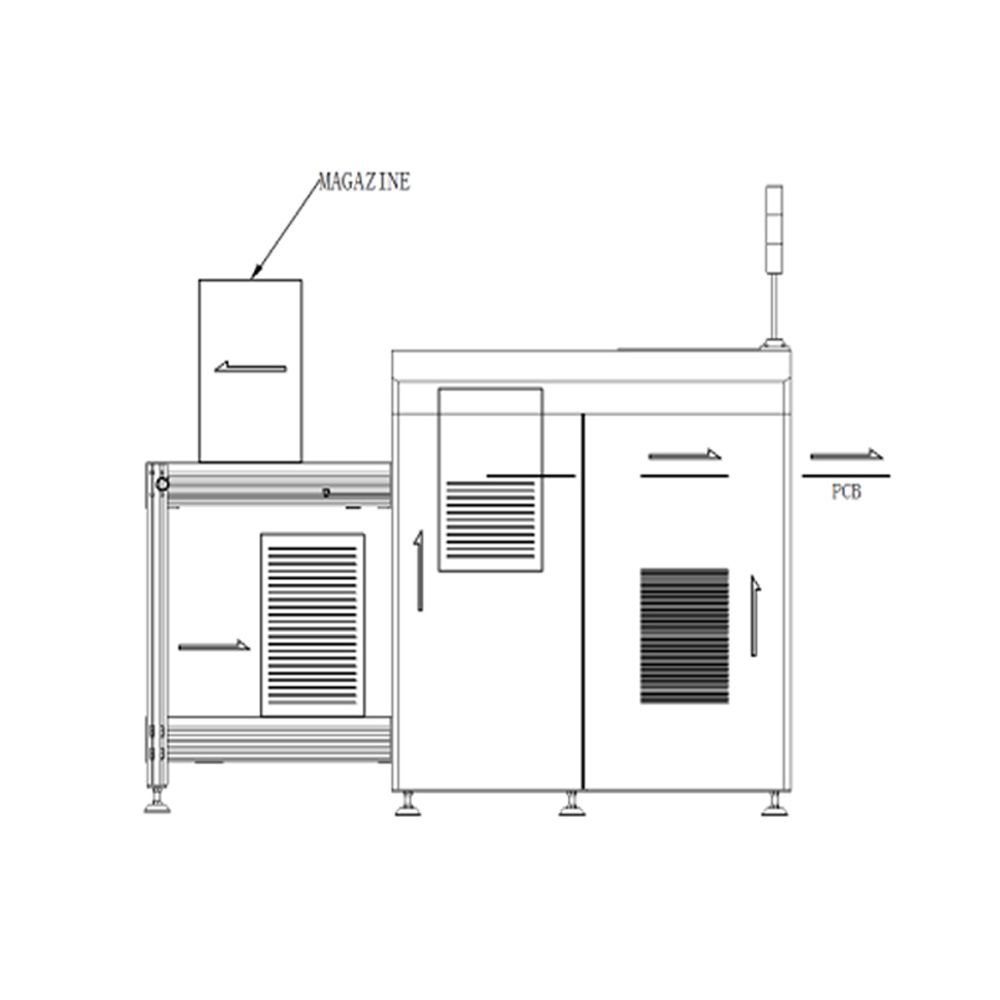

This equipment is used for the automatic loading operation of double-sided PCB boards and PCB bare boards on SMT production lines.
Features
1.PLC+touch screen control, easy to operate.
2.Adjust the position of the suction nozzle to ensure the clamping of the PCB.
3.Smooth and accurate translation (stepping motor).
4.The upper and lower air clamps ensure the location of the material box accurately.
5.Special gas path design ensures the PCB won't break.
6.Loading and Suction two functions.
7.With SMEMA signal.
