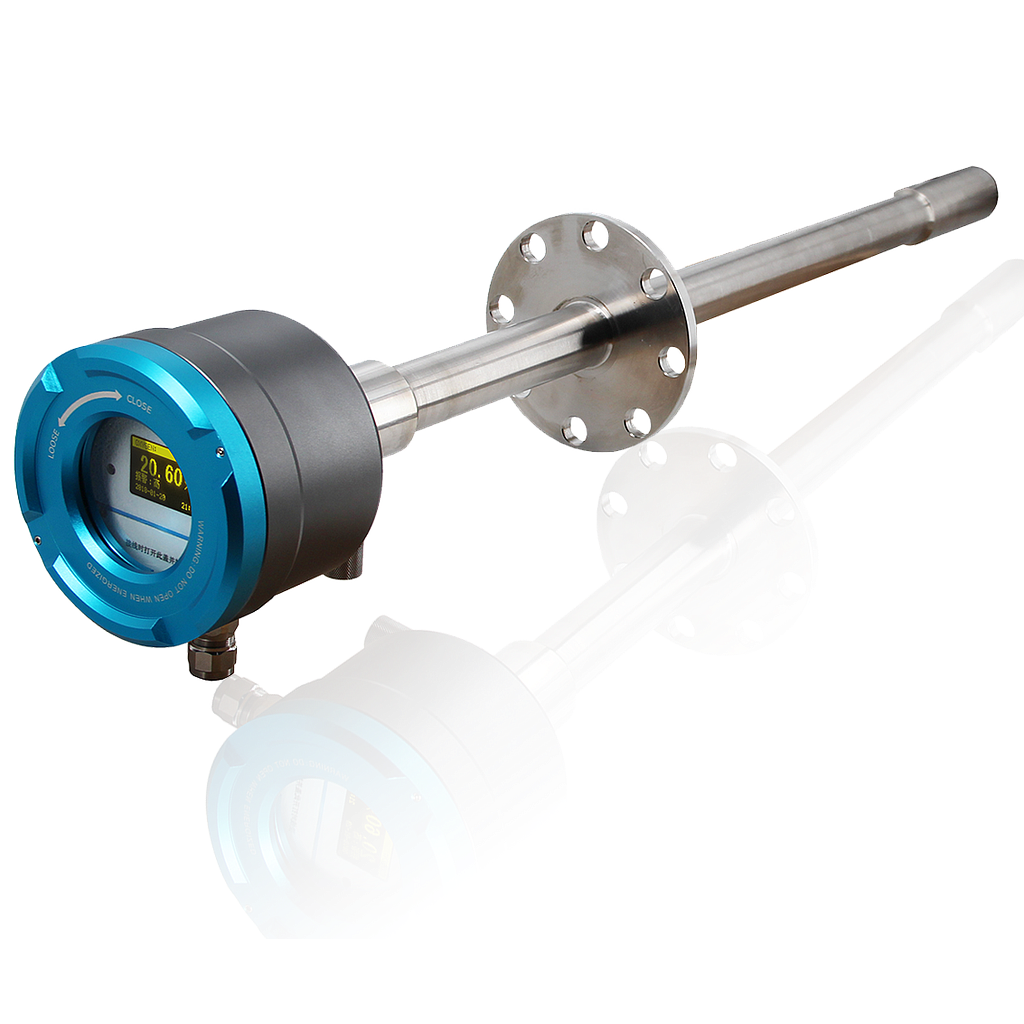

Chang AI CI-PC156 Explosion-proof high temperature humidity meter (0~40.00%vol H2O)

Scope of measurement : 0~40.00%vol H2O

Sensors: Ion Current Humidity Sensor

Accuracy: ±2%FS (Accuracy only applies to communication output,analog signal may have additional errors due to signal acquisition

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: After full preheating,T90 is less than 60s

Background gases: N2,He,Ar and other inert gases shall not contain Si,Pb,hydrocarbons,etc.

Explosion-proof level of chassis: Exd || CT6

Chassis protection level: IP65

Sensor life: More than 2 years (normal use)

Analyzer life: More than 5 years (normal use)

Weight: The net weight of the probe is about 10.3 kg (1 meter probe).The probe increases or decreases by about 1 kg for every 0.4 meter increase or decrease in weight.

Probe insertion depth: 500mm,1000mm,1200mm,1500mm or other dimensions customized

Power supply: 24VDC

Power consumption of analyzer: High temperature type:less than 20VA,low temperature type:less than 60VA

Calibration cycle: It is recommended to calibrate every other year.

The measured Environmental temperature: High temperature type:180-500°C low temperature type: below 180°C. Environmental Temperature of Electrical. Module:-10~+50°C

Storage environment: Temperature:-20~+60°C, Humidity:Less than 90% RH

Sample pressure: Atmospheric pressure±10%(only during ventilation)

Sample flow rate: 800-1000ml/min (limited to ventilation)

Communication: RS485/RS232(can be switched by software). Modbus RTU Protocol

Switching signal: Alarm value:1; Relay output:2 groups (1 group concentration alarm,1 group status alarm) relay contact capacity 24VDC 0.2A

Analog signal: Quantity:2 groups; Output mode:4-20mA/0-20mA/0-1V/0-5V/ 0-10V/1-5V,switchable output mode. Load:less than 500Ω
