REFERENCE CONDITIONS
Temperature: 23±5°C
Relative Humidity: 20 to 75%RH
Supply voltage:
230 V single-phase
400 V three-phase
Frequency of the measured signal: 50Hz
ELECTRICAL CHARACTERISTICS
Type 2 connector: 32A, 3PH+N+PE, type E-2201, 200/346V-240/415V
POWER SUPPLY

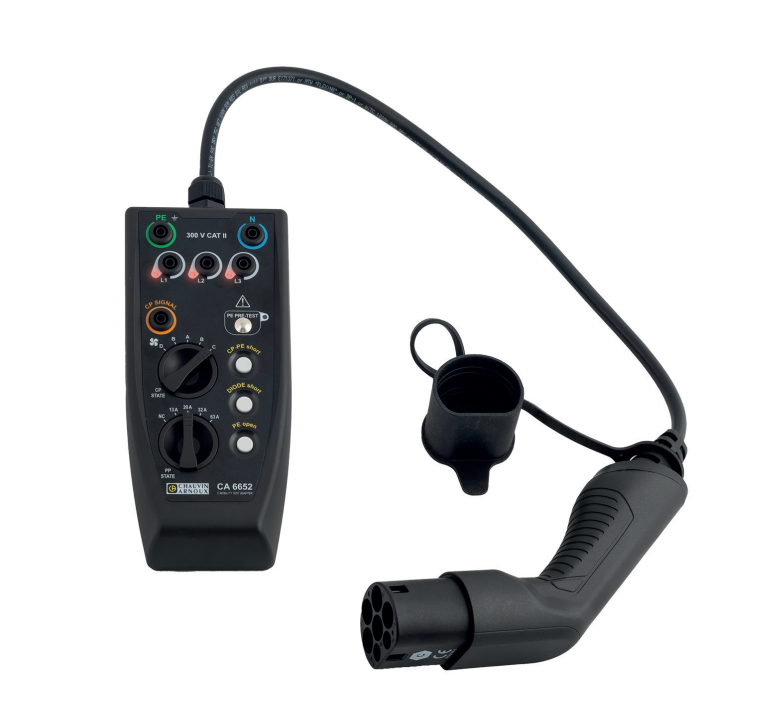

The CA 6652 is powered by the charging station being tested via the type 2 connector.
ENVIRONMENTAL CONDITIONS
For indoor use or outdoor use without rain.
Operating range: -20 to +55°C, 95%RH (from 0 to 40°C) without condensation
Storage: -20 to +70°C, 90%RH (from -10 to +40°C) without condensation
80%RH (from 40 to 60°C)
Pollution degree: 2
Altitude: <2,000m
CONSTRUCTION SPECIFICATIONS
Dimensions of the housing (L x W x H): 221 x 100 x 44mm
Dimensions of the type 2 connector approximately: 240 x Ø 58mm
Length of the cable: approximately 60cm
Weight approximately: 850g
Ingress protection:
IP40 per IEC 60529, in operation, with all terminals connected.
IP54 per IEC 60529, not in operation, with the type 2 plug protection cap in place.
COMPLIANCE WITH INTERNATIONAL STANDARDS
The instrument is compliant with standards IEC/EN 61010-2-030 and the leads are compliant with IEC/EN 61010-2-031: 300V
Category II, degree of pollution 2.
Instrument with double insulation .
ELECTROMAGNETIC COMPATIBILITY (CEM)
Emission and immunity in an industrial environment per IEC/EN 61326-1.15
