Specifications
- Clamping diameter : Ø 34 mm
- Display: Backlit LCD
- Resolution: 10 000 counts
- Number of values displayed : 3
- Type of acquisition: TRMS [AC, AC+DC] /DC
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 1000 A
- Adc: 1500 A peak
- Aac+dc: 0.15 to 1,000V (1,400 V peak)
- Best accuracy: 1% R + 3 counts
- Vac: 1000 V
- Vdc: 1400 V
- Vac+dc: 1,000 A (1,400 A peak)
- Best accuracy: 1% R + 3 cts
- Frequency of V / I : Yes / -
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Single-phase and total three-phase power values: yes
- Active (W): yes
- Reactive (VAR): yes
- Apparent (VA): yes
- FP / DPF: yes/ yes
- Harmonic analysis THDf/ THDf: yes/yes
- Frequency analysis: 25th order
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- Auto Power Off : yes
- Data recording: yes
- Communication interface: Bluetooth
- Electrical safety according to IEC 61010: 1,000 V CAT IV - 1,000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 92 x 272 x 41 mm / 600 g
State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 2 black safety crocodile clip
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps
datasheet
user guider
catalog vietnamese
catalog english
Advantages
AC and DC measurements
Measurements of power and energy values
Decomposition of harmonic orders
Measurement recorder
Description

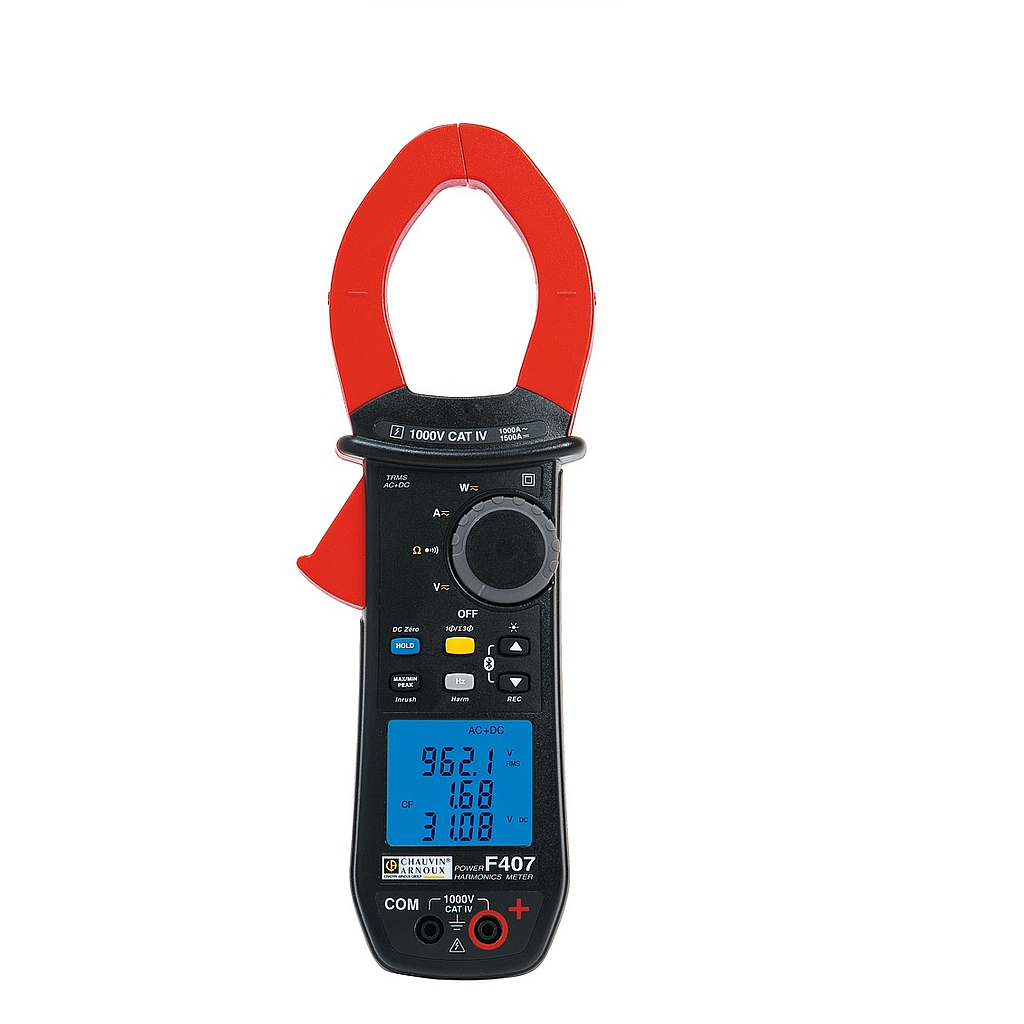

The F407 clamp is ideal for low-voltage, medium-power systems in LV electricity production and distribution, industry, railways, etc. It is also suitable for lift/elevator technicians and other lifting and transport equipment specialists. Maintenance, testing, monitoring, diagnostics and connection are the main applications for the clamps in this series.
Equipped with a fast 12-bit TRMS digital acquisition system, F407 clamps offer particularly accurate measurements. Due to their large bandwidth and high crest factor, these clamps guarantee accurate measurements whatever the type of signal. Automatic AC/DC detection is a standard feature on all the models in this range, as is IP54 protection. The large backlit 10,000-count display makes it easy to read in all circumstances. The fact that each rotary-switch position corresponds to a single function means that it is simple to use.
Specifications:
• Current: 1,000 AAC / 1,500 ADC
• AC and DC voltage up to 1,000 V
• Power values: W / VA / var, PF & DPF
• THD-f & THD-r
• Harmonics up to 25th order
• Resistance and audible continuity
• Analysis of Min, Max and Peak± on all functions
• TrueInrush current measurement
• Data recording
• Bluetooth interface and PC software
