Specifications
- Clamping diameter : Ø 60 mm
- Display: Backlit LCD
- Resolution: 10 000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS AC
- Autorange function: yes
- Aac: 2,000 A (3,000 A peak)
- Adc: 3000 A peak
- Best accuracy: 1% R + 3 counts
- Vac: 1000 V
- Vdc: 1400 V
- Frequency of V / I : Yes / -
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Temperature(K type)°C: -60.0 to +1,000.0 °C
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 1,000 V CAT IV - 1,000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 111 x 296 x 41 mm / 640 g
State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 1 wire thermocouple with integrated: Ø 4 mm isolated banana connections with ; 19 mm spacing
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps
datasheet
user guider
catalog vietnamese
catalog english
Description
With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.

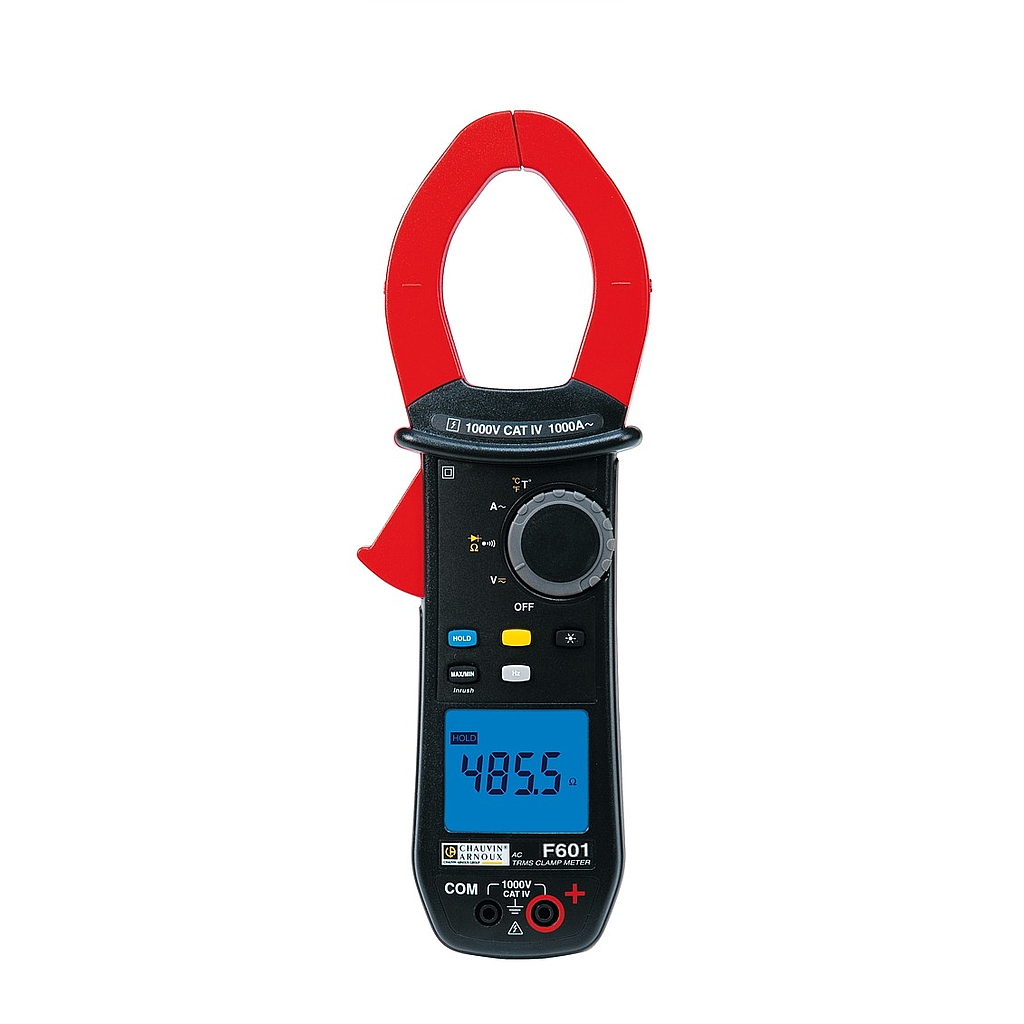

Equipped with a fast 12-bit TRMS digital acquisition system, F601 clamps offer particularly accurate measurements whatever the signal's waveform.
Specifications:
Clamping diameter: 60 mm
Current: 2,000 A AC
AC and DC voltage up to 1,000 V
Resistance and audible continuity
Temperature
Automatic AC/DC detection
TrueInrush current measurement
Hold, Min, MAX
CAT IV 1,000 V
IP54 protection rating
