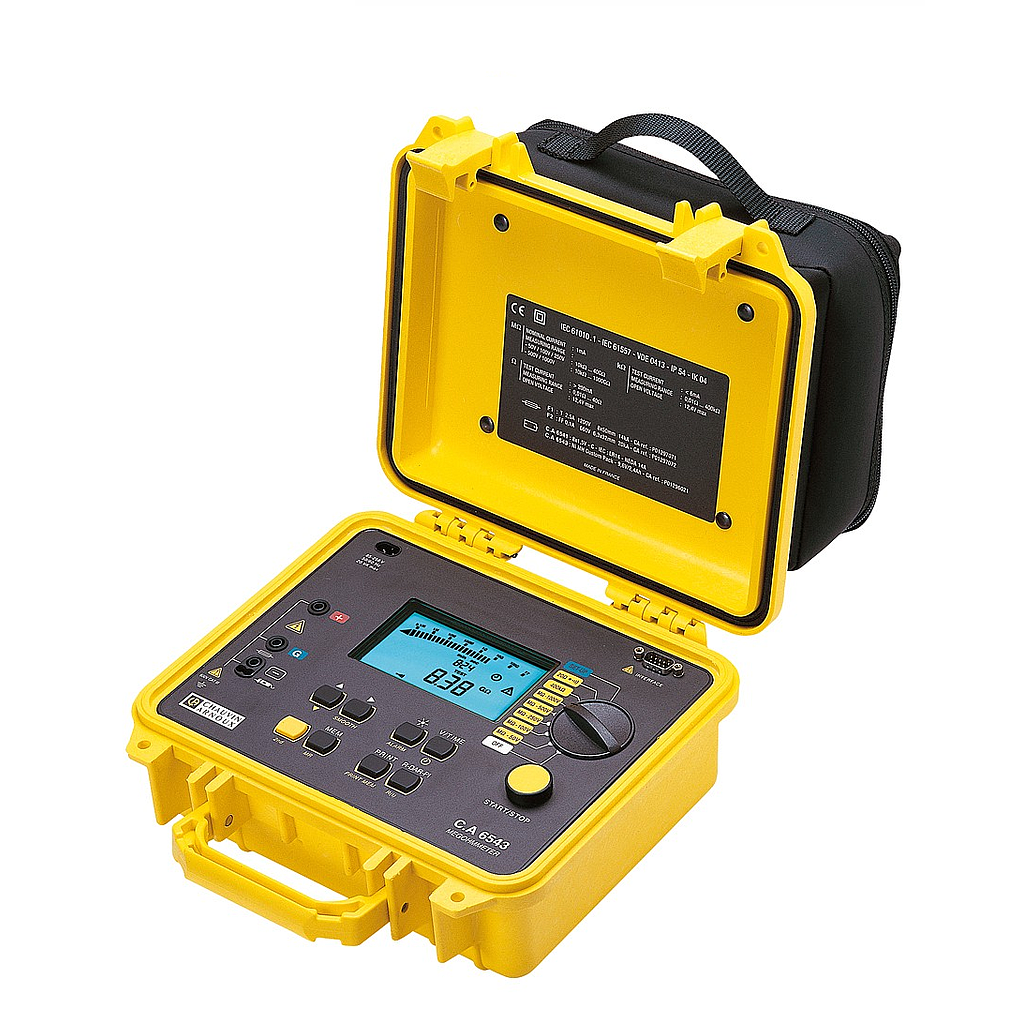

Chauvin Arnoux C.A 6543 Insulation Tester (1000V, 4TΩ)

Name: Chauvin Arnoux C.A 6543 Insulation Tester (1000V, 4TΩ)
Brand: Chauvin Arnoux
Price: 17204399.490000002 MMK
Availability: OutOfStock

ManufacturerChauvin Arnoux(View more products from this manufacturer)

ModelC.A 6543

P/NP01138902

OriginFrance

17,204,399 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Saving of measurements Rechargeable battery
- Voltage: 1 to 1,000 V AC/DC
- Insulation: 50 / 100 / 250 / 500 / 1,000 VDC
- Range : 2 kΩ to 4 TΩ
- Continuity: 0.01 to 40 Ω(buzzer + cable compensation)
- Resistance: 0.01 to 400 kΩ
- Capacitance: 0.005 to 4.999 μF
- Alarms: yes
- Smoothed display: yes
- Quality ratios: DAR / PI
- Storage: 128 kB
- Communication: two-way
- Power supply: NiMH rechargeable battery
- Safety: IEC 61010-1 Cat. III 600 V IEC 61557
- Display: giant LCD + bargraph
- Backlighting: yes
- Dimensions: 240 x 185 x 110 mm
- Weight: 3.4 kg
- PC software: Dataview ®(option)

State at delivery: carrying bag containing: 3 leads 1.5 m long (including one shielded), 3 crocodile clips, 1 test probe + batteries or power cable

datasheet
user guider
catalog vietnamese
catalog english
Description

The C.A 6543 is a 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis:

insulation: up to 4 TΩ (5 ranges) at 50/100/250/500 and 1,000 V DC
automatic calculation of insulation quality ratios: DAR and PI
programmable test duration and plotting of the R(t) curve
automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC
resistance: 0.01Ω to 400 kΩ
continuity: 0.01 Ω to +40 Ω (audible beep and cable compensation)
automatic capacitance measurement after each insulation measurement: 0.005 to 4.999 µF
microprocessor-controlled
storage of measurements (128 kB)
bi-driectional RS232
large LCD screen with digital display and bargraph
backlighting
SMOOTH function
possibility of locking insulation test voltages
programmable alarms
long battery life thanks to rechargeable battery with internal charger
remote control probe available as an option
electrical safety: IEC 61010 600V CAT III and IEC 61557
dimensions: 240 x 185 x 110mm; weight: 3.4kg
large number of optional accessories: remote control probe, MegohmView PC data processing software, printer
