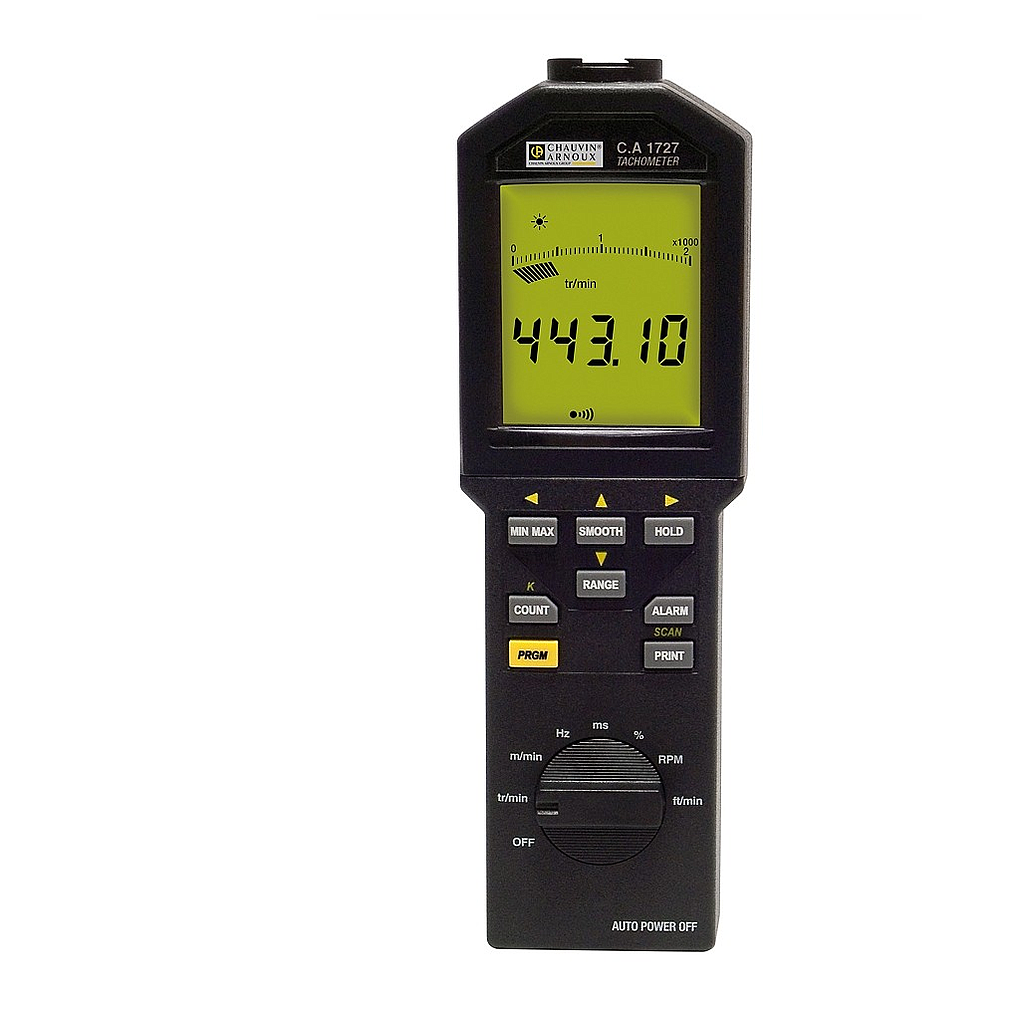

Chauvin Arnoux C.A 1727 Tachometers (contact & indirect)
Manufacturer: Chauvin Arnoux Model: C.A 1727 P/N: P01174830 Origin: France Guarantee: 12 Month - Request a Quotation
- Contact
• Measurement up to 100,000 RPM
• Contact and non-contact measurement
• Wide range of functions available: rotation speed, linear, counting frequency, period
• Possibility of programming and storage capacity for the C.A 1727
• USB link for processing the records on PC for the C.A 1727
- RPM function
+ Range: 6 to 100,000 RPM
+ Accuracy: 10-4 R ± 6 cts
- m/min function:
+ Range: 0.6 to 60,000 m/min
+ Accuracy: 10-4 R ± 1 increment
- Hz function
+ Range: 0 .1 to 10,000 Hz
+ Accuracy: 4 x 10-5 R ± 4 cts
- ms function
+ Range: 0.1 t o 10,0 00 ms
+ Accuracy: 10-4 R ±5 cts
- Ratio function
+ Range: 10 to 10,000 %
+ Accuracy: 0.1% to 1%
-Counting function: 0 to 99,999 events
+ Range: 0 to 99,999 events
+ Accuracy: ± 1 event
- Functions:
+ Min., Max., HOLD, Smoothing
+ High and low alarms
+ 4,000 alarms
- Dimensions / Weight: 21 x 72 x 47 mm / 250 g
State at delivery: delivered in a hard case with 1 FRB F connector, a 9 V battery, 1 set of 15 reflective strips (length: 0.1 m), 1 operating manual on CD and 1 printed quick startup guide , 1 TACHOGRAPH software on CD-Rom.
Accessories:
- Mechanical accessories kit P01174902
- End fittings (set of 3) P01174903
- Reflective strips (15 x 0.1 m strips) P01101797
- FRB F connector P01101785
- TACHOGRAPH software on CD-Rom P01174835
- Cable: USB-A to USB-B P01295293
datasheet
user guider
catalog vietnamese
catalog english
With its rotary switch, the C.A 1725 is simple to use and offers numerous measurement possibilities with or without contact.
Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested.
Contact measurement with accessories: a mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.
The digital display shows a 42-segment bargraph, the functions selected, the alarm thresholds, etc.
The rotary switch gives direct access to 7 different measurement units (RPM, Hz, etc.) and each key on the keyboard corresponds to a function (MIN MAX, Smoothing, alarms, etc.).
