Manufacturer: Chauvin Arnoux

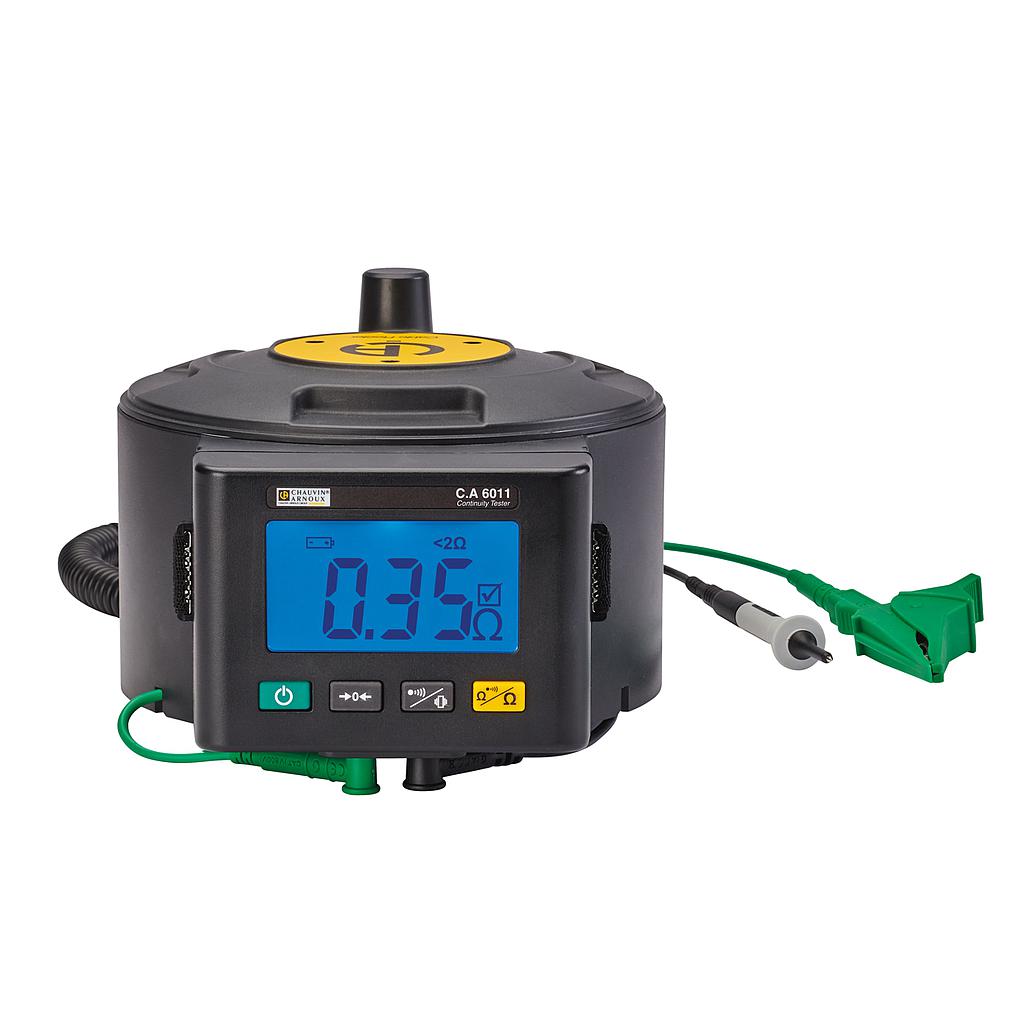

Model: CA 6011
Order No.: P01191611
Origin: France
Warranty: 12 months
Display: 2,000 counts with two-colour backlighting
Continuity
Range 0.00 Ω to 2.00 Ω; 10 mΩ; Measurement current 200 mA
Range 2.00 Ω to 20.00 Ω; 10 mΩ; Measurement current 20 mA
Open-circuit voltage: ±(4 VDC < U < 6 VDC)
Resistance
Measurement range: 1.0 Ω to 200.0 Ω
Resolution: 100 mΩ
Measurement current: 10 mA
Open-circuit voltage: ±(4 VDC < U < 6 VDC)
Continuity threshold: Programmable 1 Ω ru 2 Ω
Compensation of cable resistance: Yes, < 5 Ω
Indication of test compliance / non-compliance: Visual and/or audible and/or vibrating, configurable
Compliance with standards: IEC 61557-1 & IEC 61557-4
IEC 61010-1, IEC 61010-2-030 300 V CAT IV
Automatic standby: 10 minutes / deactivatable
Battery life: 30,000 measurements in real operating conditions
4,500 as per IEC 61557-4 protocol
Voltage presence: Visual and audible
Power supply: 4 standard 1.5 V AA/LR6 batteries
Dimensions (instrument + reeling box): 225 x 185 x 135 mm
Weight: CA 6011 only: 350 g – Reeling box with 30 m cable: 1.2 kg
Delivered in CA cardboard box
1 C.A 6011 measuring instrument with:
- 1 elastic strap for fixing the measurement unit to your wrist
- 1 set of 4 x 1.5V AA alkaline batteries.
- 1 set of documentation in 5 languages (F/GB/D/I/E) comprising:
- 1 verification report
