- Display: Triple digital display
- Installation types: Single-phase, split-phase, three-phase with or without neutral and many other specific configurations
- Number of channels: 3 voltage inputs / 3 current inputs (calculation of neutral current)
Measurements
- Network frequency: 50 Hz, 60 Hz & 400 Hz
- Voltage (measurement ranges / best accuracy): 10.00 -1,000 Vac/dc/± 0.2 % + 0.5 V
- Current (depending on sensor): (measurement ranges / best accuracy): 5 mAac to 10 kAac / 50 mAdc to 1.4 kAdc / ±0.5 %
Calculated measurements
- Ratio: Up to 650,000 V / up to 25,000 A
- Power : 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA
- Energy : up to 4 EWh / 4 Evarh / 4 EVAh
- Phase: cos φ, tan Φ, PF
- Harmonics: up to the 50th order
Complementary functions
- Phase order: Yes
- Min / Max: Yes
- Mounting: Magnet, hook
Recording
- Sampling / Acquisition rate / Aggregation: 128 S/period - 1 measurement per second - from 1 min to 60 min
- Memory: SD card 2 GB (SD-HC up to 32 GB)
- Communication: Ethernet, Bluetooth and USB
- Power supply: 110 V - 250 V (+10 %, -15 %) at 50-60 Hz & 400 Hz
- Safety: IEC 61010 600 V CAT IV – 1,000 V CAT III
Mechanical Specifications
- Dimensions: 256 x 125 x 37 mm without sensor
- Weight: 950 g
- Casing: IP54, UL (pending)
STATE AT DELIVERY:
1 carrying bag, 4 measurement cables (straight-banana/straight-banana 3 m long - black), 4 crocodile clips (black), 1 set of plugs (for the extremities of the cables and current sensors), 1 mains cable, 1 x 8 GB SD card, 1 USB cable, 1 SD –USB adapter, PC software (PEL Transfer), 1 user’s manual (on CD), 1 safety datasheet, 1 quick start guide.
Accessories:
-DataVIEW® software P01102095
-Bag No 23 P01298078
-Leads/clamps kit P01295476
-Set of id. rings/inserts P01102080
-5 A box P01101959
-MN93 clamp P01120425B
-MN93A clamp P01120434B
-C193 clamp P01120323B
-PAC93 clamp P01120079B
-AmpFlex® A193-450 mm clamp P01120526B
-AmpFlex® A193-800 mm clamp P01120531B
-MiniFlex® MA193-250 mm clamp P01120580
-MiniFlex® MA193-350 mm clamp P01120567
-E3N clamp P01120043A
-E3N adapter P01102081
-J93 clamp P01120110
-J193 clamp P01120111
-MultiFIX P01102100Z
-Mains power cable P01295174
-PEL100 mains adapter P01102134
PEL Android application / NEW VERSION V 1.8.25 now including MOTOR measurement applications
Motor Measurement Applications

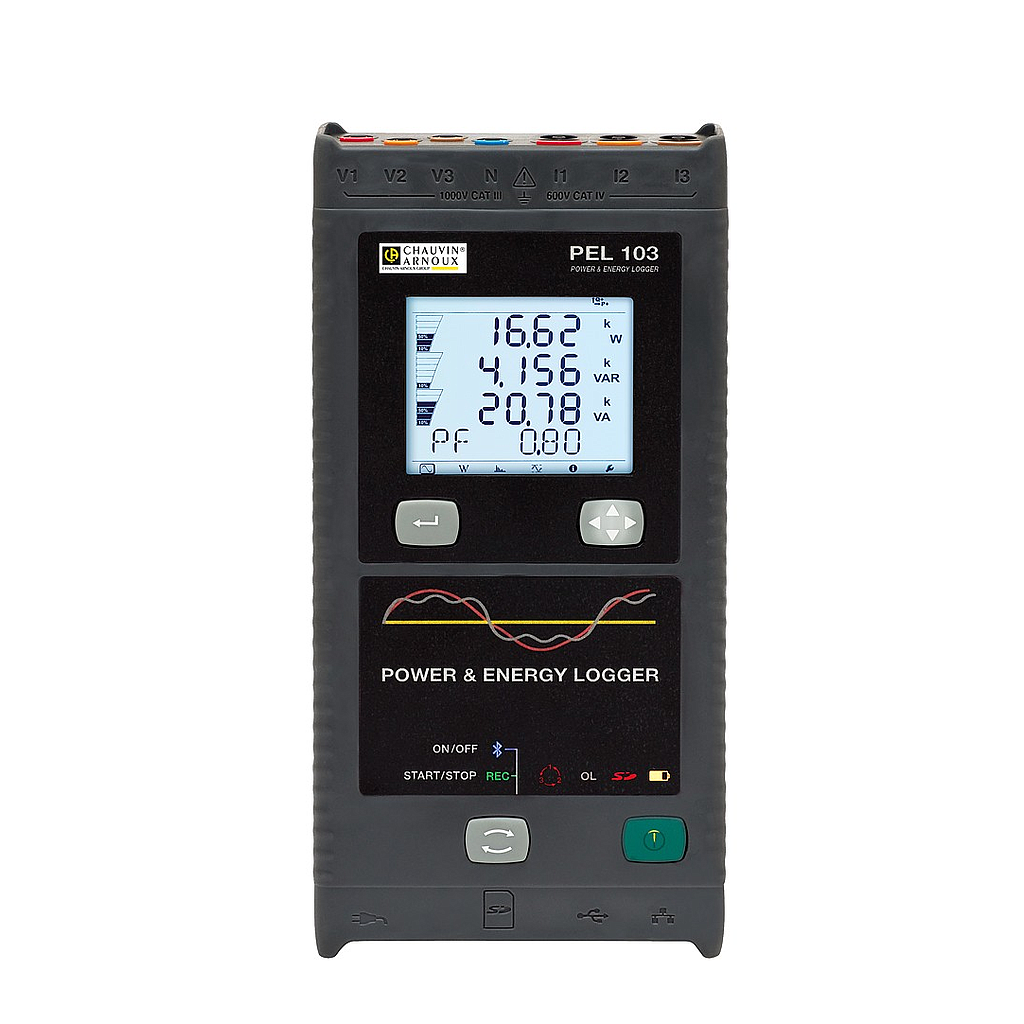

Ergonomic, magnetized and suitable for all types of cabinets, PEL103 loggers provide all the power and energy measurements simultaneously.
