Detector
High performance Si-pin detection component
Excitation source
45KV/200uA-Integrated Micro X-ray Tube and High Voltage Source with Silver/Tungsten Target End Windows
Element detection range
PMI mode:Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi, total 25 elements.
Optional plating mode: copper silver plating, copper tin plating, etc
Detection object
solid
Analytical methods
Direct reading analysis method+basic parameter method（FP）
Software
Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email；
Size
245mm(L)X91mm(W)X319mm(H)
Weight
≤1.75KG（Including battery）
Microcomputer display system
1. Semi transparent and semi reflective industrial grade customized touch screen ≥ 5 inches
2. Resolution 1080 * 720
Source
1. Rechargeable lithium battery, standard configuration 6800mAh, voltage: 7.2V; Sustainable work for up to 12 hours;
2. The instrument has a built-in battery level display;
Charging mode
1、Universal adapter charging power supply
Collimator, filter
1. Special radiation resistant material collimator, inner diameter 3MM
2. No filter, saves switching time, and software deducts background interference
Front end testing window
*≤9mm*5mmWaist shaped window
Test report sending method
E-mail Send, Bluetooth synchronous transmission, software synchronous transmission
Data transmission method
Wifi、Bluetooth
Maintenance method
Remote software upgrade and diagnosis, on-site maintenance, diagnosis
User management
Multi level user management function (can create multiple accounts, achieve corresponding person numbers, facilitate management and data traceability)
Protective cover
The instrument is equipped with a protective cover, which has radiation and damage protection functions (not standard)
Material sensing and instrument status prompt
1. The body has a material sensing function, which can intelligently identify whether there is a test object in front of it.
2. Intelligent status display light, which displays three working states through the intelligent status display light (red flashing indicates being detected, green flashing indicates there is no object to be tested in front, and green long light indicates that there is an object to be tested in front)
Operating environment temperature and humidity
humidity≤90%
-20℃ - +60℃
Safety
*1. Instrument side measurement value ≤ 0.2 μ Sv/h (after deducting background)
Note: The supplier must provide a copy of the "Handheld X-ray Analyzer (Leakage) Report" issued by a nationally authorized legal metrology institution or a national level testing center in the response document as
evidence.
2. Multiple safety protection, no radiation testing;
3. The radiation level during work is much lower than international safety standards, and it has the function of sample free aerial testing and automatic shutdown of X-ray tubes.
Appendix

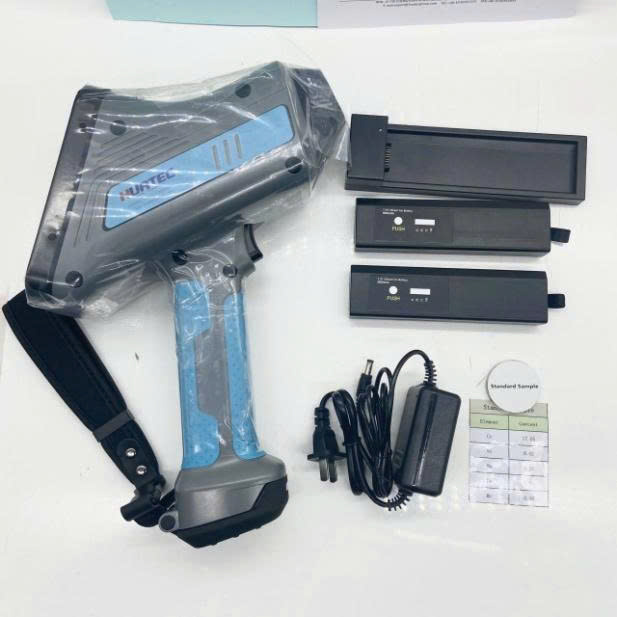

Standard configuration:
